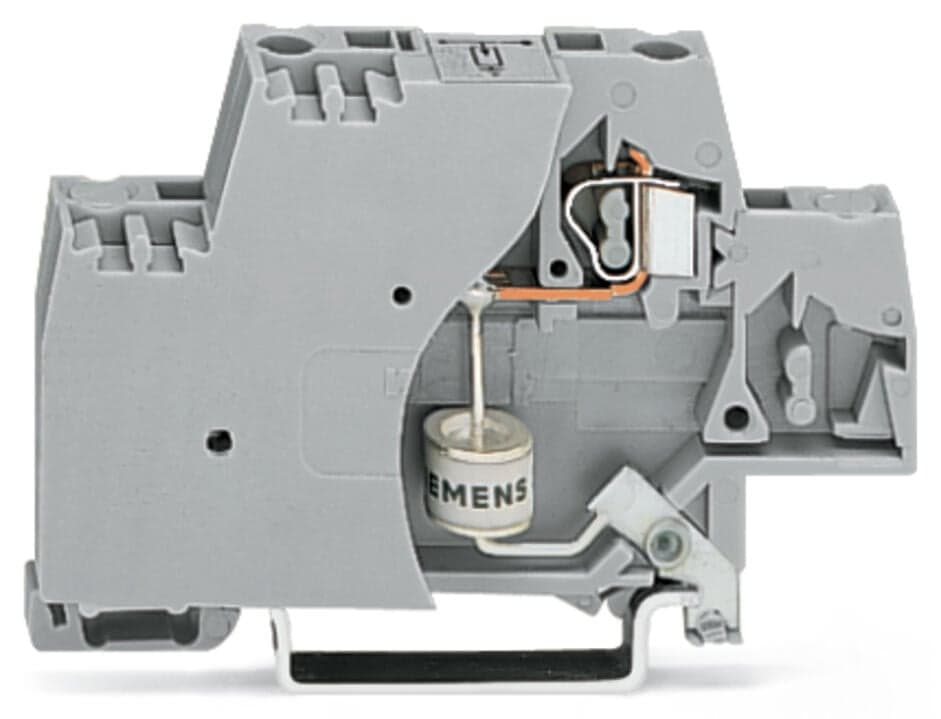

Product Model
280-503/281-579

Selling Points
- 1Enhanced Protection: Equipped with a gas-filled surge arrester for superior electrical protection.
- 2DIN Rail Compatibility: Directly connects to DIN rail for easy installation.
- 3Versatile Voltage Range: Compatible with 24 VAC/VDC.
- 4Robust Design: Double-deck terminal block with an end plate for secure connections.
- 5Customizable Pricing: Available on request for specific pricing and availability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal operating voltage | AC/DC?24?V | DC ignition voltage | 72 … 108 V |
Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 5?kA |
Protection level (8/20?μs) | ≤?AC 600?V | Capacitance | ≤?2?pF |
Connections (number) | 2 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 10?mm?/ 0.394?inches |
Height | 64 mm / 2.52 inches | Depth from upper-edge of DIN-rail | 39.5 mm / 1.555 inches |
Design | with end plate; with direct connection to DIN-rail | Mounting type | DIN-35 rail |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.364MJ | Weight | 13g |
Processing temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454194260 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
