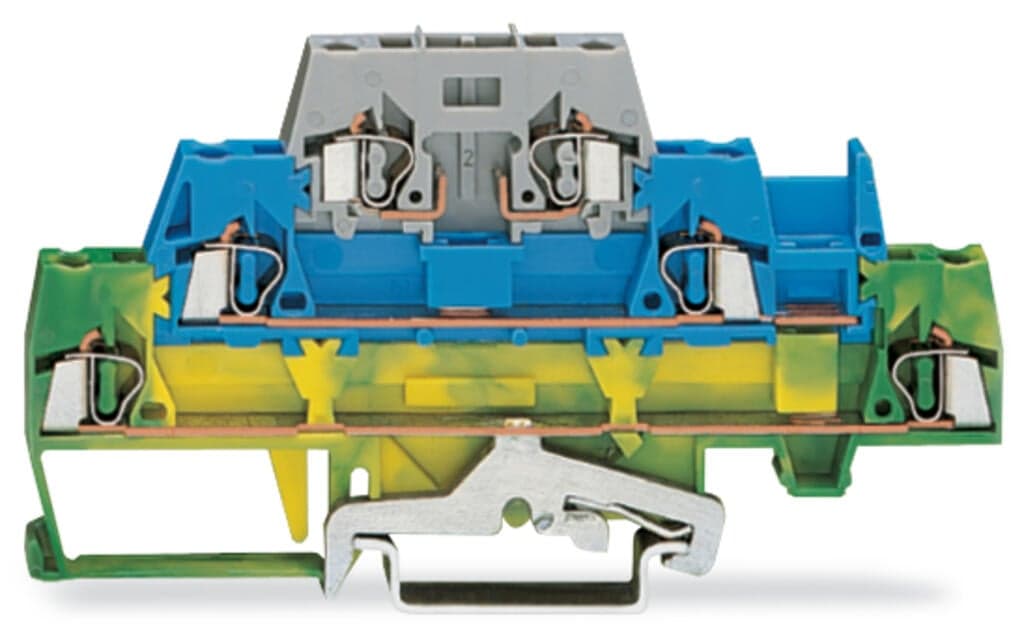

Product Model
280-510
Selling Points
- 1The WAGO 280-510 features CAGE CLAMP connections for secure and reliable wiring.
- 2Double-deck or triple-deck configurations save space in electrical installations.
- 3Rated for 20A, suitable for demanding electrical applications.
- 4Supports up to 400V, making it versatile for various electrical systems.
- 5Constructed with polyamide insulating material for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 103?mm?/ 4.055?inches | Depth from upper-edge of DIN-rail | 49.5?mm?/ 1.949?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | without marking level | Note (material data) | Information on material specifications can be found here |
Color | green-yellow/blue/gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.313MJ | Weight | 21.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821293552 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 6ed98591-756f-4f94-9c0b-debd0a59ee07 | SCIP notification number (Belgium) | 1474dd91-4d99-44bb-8ba4-46e16c36ae78 |
SCIP notification number (Bulgaria) | 97f75d78-4439-4a94-9cfd-74f978460604 | SCIP notification number (Czech Republic) | d5fc19bf-567e-4dd0-b56e-2e20caf01d0e |
SCIP notification number (Denmark) | 0442b196-1414-476a-9fe4-75c635605326 | SCIP notification number (Finland) | 70b18fd2-4201-4ea0-a076-1adfc7fa8699 |
SCIP notification number (France) | 424c9ee6-29c7-4292-a120-026cede32c4c | SCIP notification number (Germany) | 4ff53ca3-4137-459b-adc3-9d5c087415f7 |
SCIP notification number (Hungary) | 820fafcf-3a67-486a-af31-0273c3b376ec | SCIP notification number (Italy) | 892280af-3b6d-4292-95aa-3112ddf9437a |
SCIP notification number (Netherlands) | 2aae21cb-3cd3-4ccb-b992-d0427a7d8f29 | SCIP notification number (Poland) | 3fd85a4f-eea2-4242-a886-7678a5f951a3 |
SCIP notification number (Romania) | 5b865202-f7a3-4fa3-8160-5367a02f566d | SCIP notification number (Sweden) | 1d6fb3dd-6512-41dc-ac30-879c9b226a47 |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.532W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
