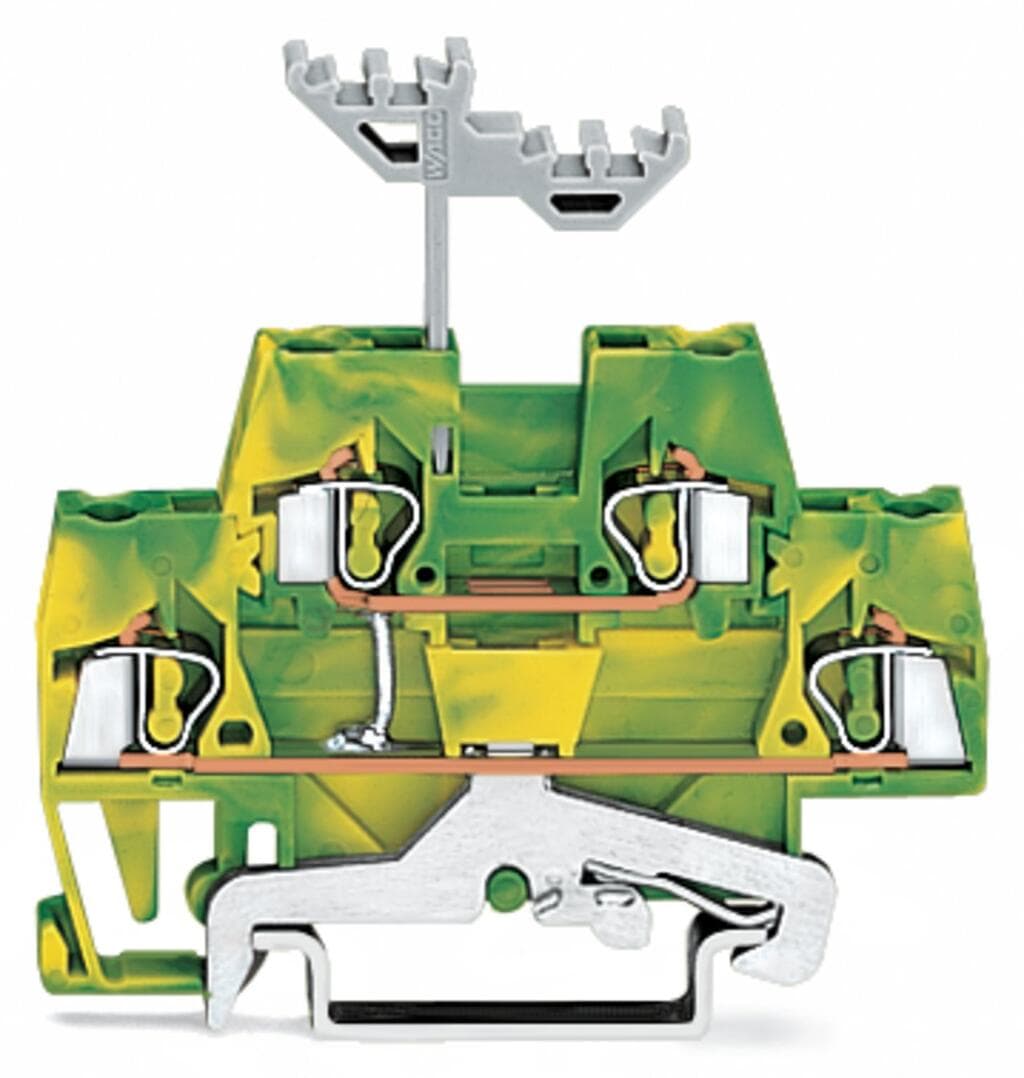

Product Model
280-517
Selling Points
- 1High-Safety Connection: Meets industrial standards with vibration-proof and maintenance-free spring pressure connection technology.
- 2Easy Installation: Push-in termination for solid and stranded conductors, including fine-stranded conductors with ferrules.
- 3Durable Design: Constructed from polyamide 6.6 material with a fire load of 0.147 MJ.
- 4Versatile Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5, carrier rail, and DIN-35 rail mounting options.
- 5Secure Connections: Secure female plugs via locking levers and strain relief plates to prevent mis-mating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 64?mm?/ 2.52?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.17MJ | Weight | 14.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454194338 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 1b40fd41-8179-4c2a-b12f-9ae12c5622b9 | SCIP notification number (Belgium) | eaf66b9b-02ac-4620-b26c-44bf385ff3b1 |
SCIP notification number (Bulgaria) | b5b3970d-c555-44ef-8e1f-06702617764e | SCIP notification number (Czech Republic) | e363909f-f767-4710-8bb7-81041b62bdc3 |
SCIP notification number (Denmark) | 3ef5849e-da39-4b58-893c-3ce6fcd5feae | SCIP notification number (Finland) | f52e16fc-97b3-42b5-9886-3224e1e32bf4 |
SCIP notification number (France) | f58c64d3-ed83-442b-9d64-d857252479a9 | SCIP notification number (Germany) | e2910799-fed3-4835-b43a-e61c4d7e61f8 |
SCIP notification number (Hungary) | 67c2c702-70c4-4e6a-91b3-4c5547371db2 | SCIP notification number (Italy) | 1460fc0b-13cb-48bb-bd62-adb5959b66e9 |
SCIP notification number (Netherlands) | 36edebed-d5fe-497a-99ae-2aa5d52ad91b | SCIP notification number (Poland) | a38f69bf-8e7e-4b77-b8e3-319b9a9bf98d |
SCIP notification number (Romania) | 09cb63bd-1df5-418d-b43a-f02b59199d2b | SCIP notification number (Sweden) | 74f419ec-db54-400b-8f2d-4bb87358a3c3 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
