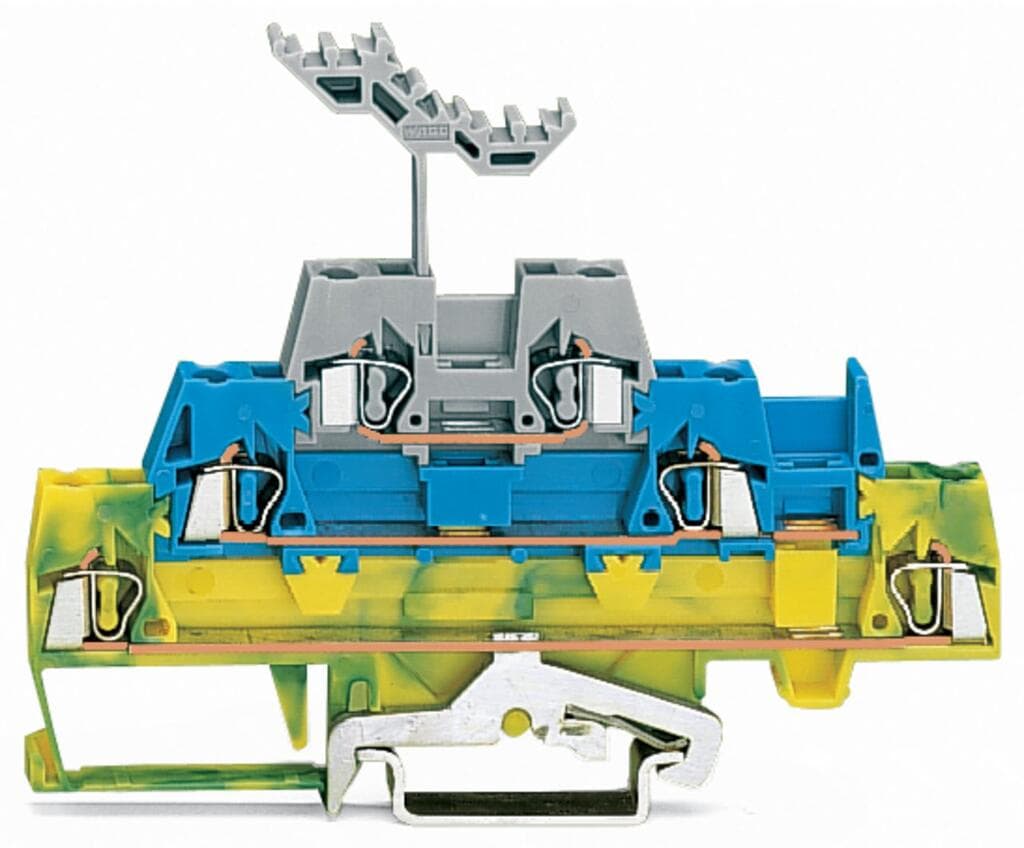

Product Model
280-547
Selling Points
- 1Designed for DIN rail 35 x 15 and 35 x 7.5.
- 2Fast, vibration-proof, and maintenance-free connection.
- 3Rated for 20 A.
- 4Offers 6 positions for secure wiring.
- 5Available in green-yellow/blue/gray for clear visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 103?mm?/ 4.055?inches | Depth from upper-edge of DIN-rail | 76.5?mm?/ 3.012?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow/blue/gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.305MJ | Weight | 21.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821293712 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | e407601c-dadd-42a4-86ef-dbe1865d7a29 | SCIP notification number (Belgium) | a631be4b-c8fe-4271-86ff-dacb76e8c394 |
SCIP notification number (Bulgaria) | a2553e0b-20e7-42d1-8cd1-9f9011c6cc0d | SCIP notification number (Czech Republic) | e73785c8-fe6b-4d0a-9552-4fb7e993357a |
SCIP notification number (Denmark) | 5860c2f2-1710-4280-8ab6-938e82e9de04 | SCIP notification number (Finland) | ae54751c-f490-4840-946f-2828ecc1c985 |
SCIP notification number (France) | c1d16e17-6f74-4cda-b7df-babff4d398bd | SCIP notification number (Germany) | f4d1c319-ec5a-4e03-af77-e7f34f5c4418 |
SCIP notification number (Hungary) | 7277f91a-1e72-45c6-bde1-7e205c21d380 | SCIP notification number (Italy) | e7b3ceb8-c490-4d58-803c-6d3e3da61b5b |
SCIP notification number (Netherlands) | 7e9d1298-20b4-44fe-af73-c677e69484bf | SCIP notification number (Poland) | d59a4280-17f2-42fc-8706-20d5a4e3e184 |
SCIP notification number (Romania) | 3c7cf509-abfc-4c63-a84b-4de1e57033e7 | SCIP notification number (Sweden) | 6f42386a-f684-4fa3-8e81-3a94cb1a15e1 |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.064W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
