Product Model
280-559
Selling Points

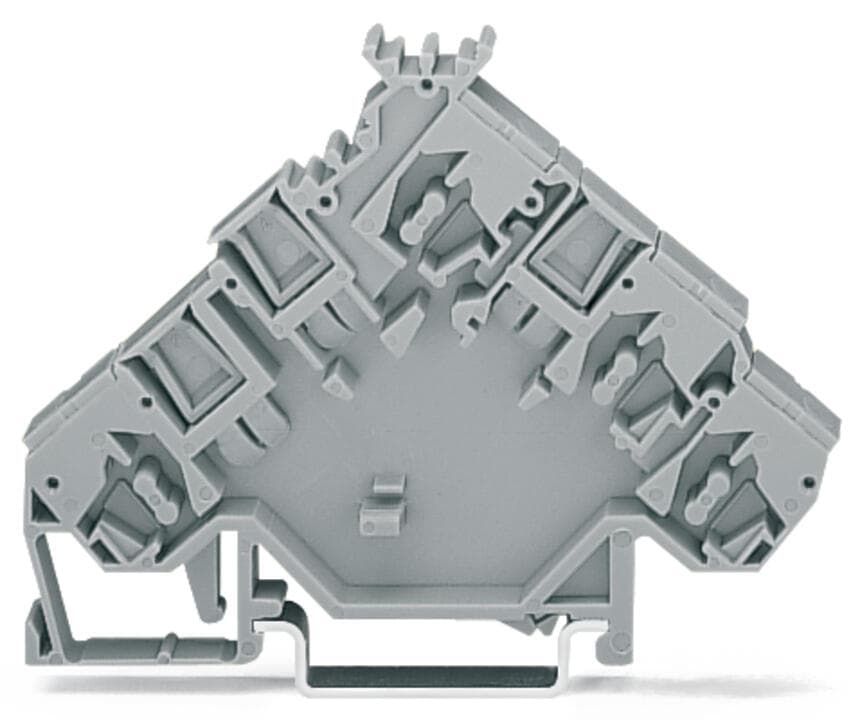

- 1Gray Color and CAGE CLAMP Spring Connections: The WAGO 280-559 Spacer features a durable gray color and reliable CAGE CLAMP spring connections.
- 2DIN-35 Rail Compatibility: Designed to mount seamlessly on DIN-35 rails, ensuring easy integration into your industrial setup.
- 3Versatile Use: Compatible with 3-conductor sensor terminal blocks and actuator terminal blocks, offering flexibility in your applications.
- 4High-Quality Insulation: Constructed with polyamide 66 (PA 66) insulation material for enhanced electrical safety and durability.
- 5Compact Design: Measuring 5mm in width, this spacer is perfect for space-constrained industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Spacers with the same profile clearly differentiate between sensor or actuator terminal groups, e.g., of different power supply. | Number of levels | 3 |
Width | 5?mm?/ 0.197?inches | Height | 80?mm?/ 3.15?inches |
Depth from upper-edge of DIN-rail | 55.5?mm?/ 2.185?inches | Design | angled |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.347MJ |
Weight | 6.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332151474 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
