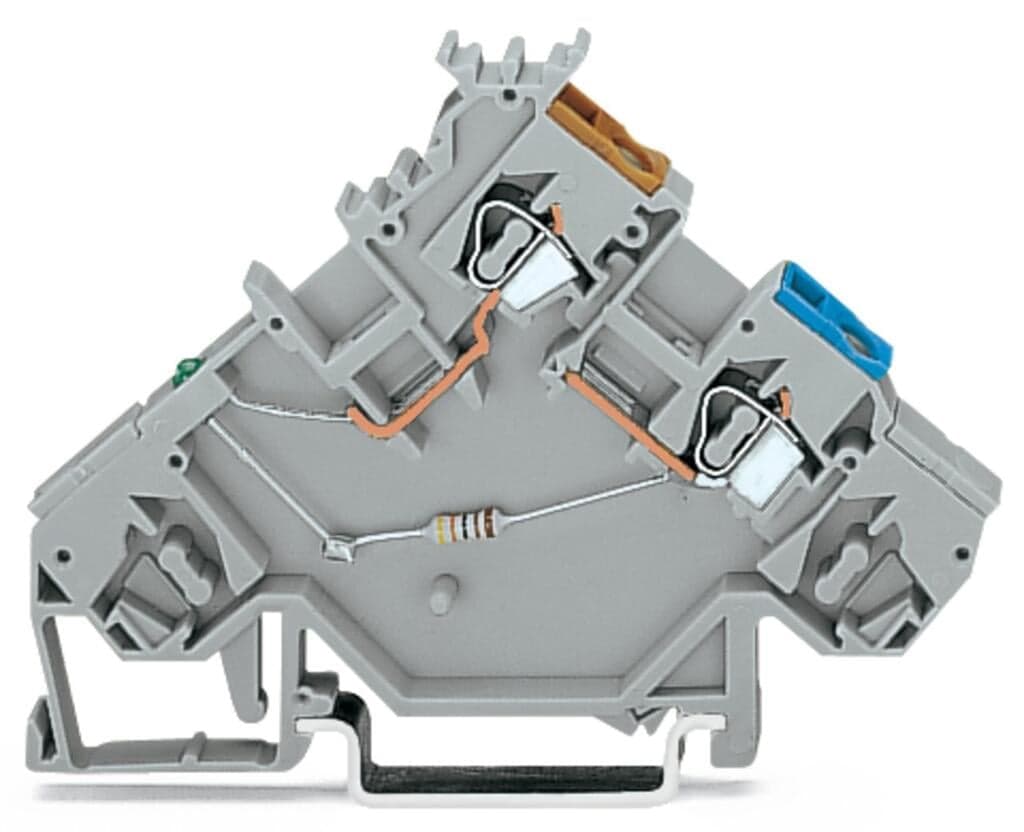

Product Model
280-562/281-411
Selling Points
- 1Withstands short-time current up to 120 A/mm² for reliable high-current applications.
- 2Push-in CAGE CLAMP® connections allow for quick and tool-free conductor insertion.
- 3Automatic clamping ensures secure connections without wire damage or deformation.
- 4Suitable for various conductor sizes from 0.25 to 2.5 mm², accommodating different wiring needs.
- 5Constructed with high-quality materials for long-lasting performance in demanding electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 2 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 80?mm?/ 3.15?inches | Depth from upper-edge of DIN-rail | 55.5?mm?/ 2.185?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.306MJ | Weight | 10.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454194550 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | d9f92389-2054-4a27-b2f3-97722f05f9c0 |
SCIP notification number (Belgium) | e0133911-6fda-4680-bc0a-020a52d13fa0 | SCIP notification number (Bulgaria) | 4fecfd6c-4306-4ba4-9bb8-a9301690c699 |
SCIP notification number (Czech Republic) | e6bd3c9d-b497-4963-bcee-a2e31652cd90 | SCIP notification number (Denmark) | edd28ff7-a734-4fb5-bc4c-d3749e3d1d8a |
SCIP notification number (Finland) | 3c4e7782-8e96-40b6-a87b-aacc5baef9de | SCIP notification number (France) | aa085ec2-4acb-4a3e-a0c4-fb37353f7e3e |
SCIP notification number (Germany) | 6d37df3a-bfe3-4f6c-b8bf-d58814d5cc8c | SCIP notification number (Hungary) | cb28a56c-8101-431b-af38-a5874b161a84 |
SCIP notification number (Italy) | f131bb2a-1ff1-482f-a327-d9af8d0034b9 | SCIP notification number (Netherlands) | 316c7433-d2d5-459d-af26-2489a271e496 |
SCIP notification number (Poland) | 3cc7742b-9769-443a-85b2-5d41913a7885 | SCIP notification number (Romania) | 767033ab-1015-46c4-a5b5-b47b516abe21 |
SCIP notification number (Sweden) | 01daa877-90e7-4b01-9493-14d8723472c2 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated voltage (III/3) 2 | 250V |
Rated surge voltage (III/3) 2 | 4kV | Rated current 2 | 20A |
Power loss, per pole (potential) | 0.532W | Rated current I<sub>N</sub> for specified power loss | 20A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
