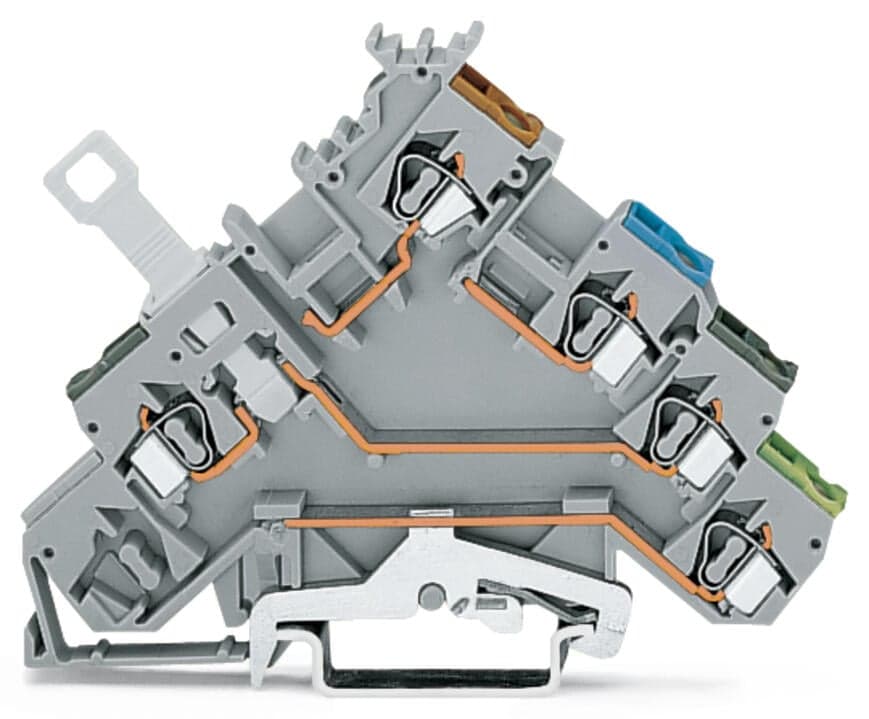

Product Model
280-573
Selling Points
- 1Reliable connections with CAGE CLAMP technology.
- 2Colored conductive entries for easy identification.
- 3Compatible with 2.5 mm² wires.
- 4Durable and long-lasting design.
- 5Easy to install and use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 5 |
Number of levels | 4 | Width | 5?mm?/ 0.197?inches |
Height | 90.5?mm?/ 3.563?inches | Depth from upper-edge of DIN-rail | 63.5?mm?/ 2.5?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.333MJ | Weight | 18.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454093754 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | dbe80cfb-6745-45b9-86b9-b63c860b9028 | SCIP notification number (Belgium) | fa0a1c33-24dd-4617-8826-deedcf0b0ccb |
SCIP notification number (Bulgaria) | e209c7e3-fe9c-457e-bd91-412ee399da25 | SCIP notification number (Czech Republic) | 04c46a9a-520e-469d-a133-7c4b4ae3f6d1 |
SCIP notification number (Denmark) | 60cda16e-9d35-48b6-bbfa-ee4cde10e13c | SCIP notification number (Finland) | 19fa26d7-6d55-4140-9409-c8465f41c114 |
SCIP notification number (France) | a6577a6a-5dad-4c0c-b781-cdc8e6c51f7a | SCIP notification number (Germany) | e65797ee-e461-40d2-af16-fb133218a9d3 |
SCIP notification number (Hungary) | f6f0fb42-0640-47b9-a6fe-313eb30504c6 | SCIP notification number (Italy) | 22f25927-0ee5-4698-981a-647d3f6c7415 |
SCIP notification number (Netherlands) | 8174a860-a2d1-4f2c-8078-75572a87c263 | SCIP notification number (Poland) | f9ebd5a8-336a-4e8b-a460-8d7bbb4890f3 |
SCIP notification number (Romania) | a1ba9476-90f0-4430-b911-382ad40b1027 | SCIP notification number (Sweden) | 1f286f53-a7d3-4bba-ad9a-c7601ef2f177 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 10A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.133W | Rated current I<sub>N</sub> for specified power loss | 10A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
