Product Model
280-577/281-496
Selling Points

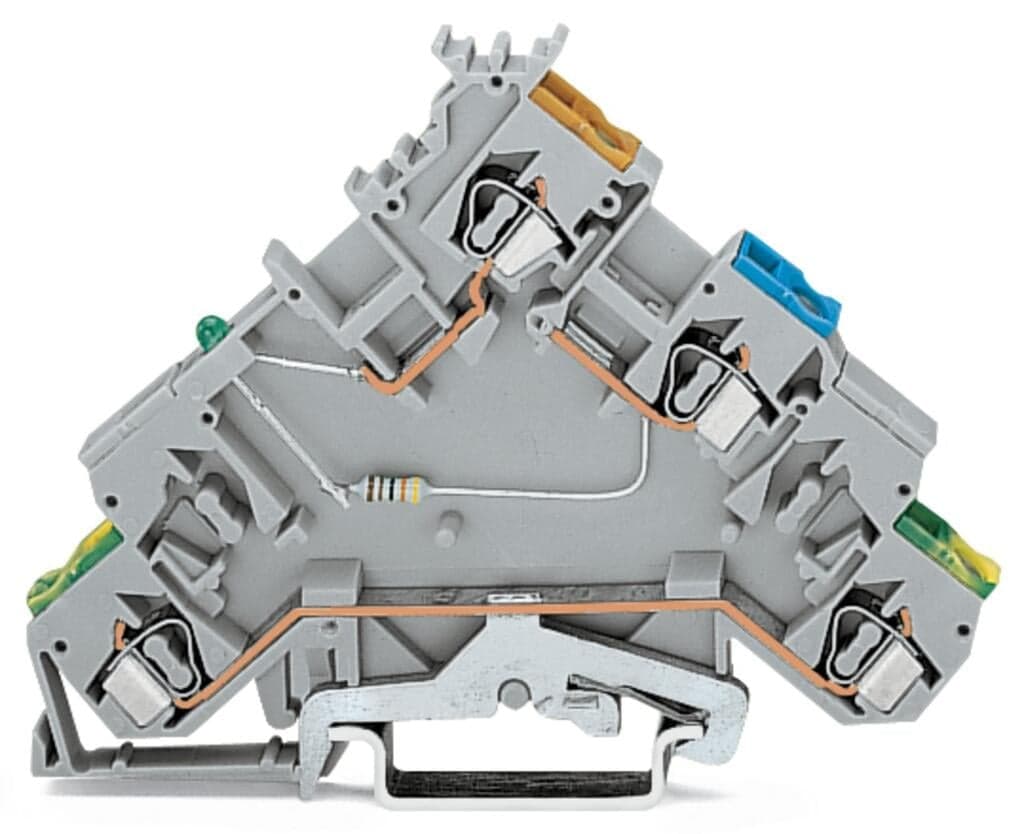

- 1High-Side PNP Switching Sensors Compatibility: Designed for high-side PNP switching sensors.
- 24-Conductor Configuration: Ideal for applications requiring multiple connections.
- 3CAGE CLAMP Technology: Secure and vibration-proof connection system.
- 4Colored Conductor Entries: Easy identification of conductor positions.
- 5Built-in End Plate: Closed terminal block with end plate for added security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 3 |
Number of levels | 4 | Width | 6?mm?/ 0.236?inches |
Height | 90.5?mm?/ 3.563?inches | Depth from upper-edge of DIN-rail | 63.5?mm?/ 2.5?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.436MJ | Weight | 21.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454365776 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 5c8c7eeb-4d2b-44fa-9bea-86a406450d77 | SCIP notification number (Belgium) | a186b9d2-4f0c-44aa-b9fd-957b92265b2d |
SCIP notification number (Bulgaria) | 1f44b49a-960e-4d2e-b50a-83dde9c81e72 | SCIP notification number (Czech Republic) | 68841133-6de7-4c18-9e60-a64496de9454 |
SCIP notification number (Denmark) | 6501b93b-8a35-4895-990f-2ed815d2d6b7 | SCIP notification number (Finland) | de69098d-fe53-438b-82ad-c29e7a51c13a |
SCIP notification number (France) | 963ee2dc-a9b4-4bb5-96ad-f345065af8c2 | SCIP notification number (Germany) | f23b7083-b710-46f4-a8e2-ad815cbed155 |
SCIP notification number (Hungary) | 3d1f2ca0-92a9-43a6-82e2-8b540e51cfcc | SCIP notification number (Italy) | 72f534a3-077f-4065-a8e9-fedf3324b61d |
SCIP notification number (Netherlands) | 51c82611-20a6-47ac-a050-a5e3a18f13e8 | SCIP notification number (Poland) | d0225d07-f4c2-4ff1-aa98-c650904e227a |
SCIP notification number (Romania) | 642d5cad-8b78-408e-a910-2d4191ede0e8 | SCIP notification number (Sweden) | 662678c7-e89f-4c40-885b-8eb646261944 |
Rated current | 20A | Power loss, per pole (potential) | 0.532W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Voltage type 1 | DC | Nominal voltage | 24V |
Current consumption (note) | LED 4.8 mA | LED schaltend für | PNP |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
