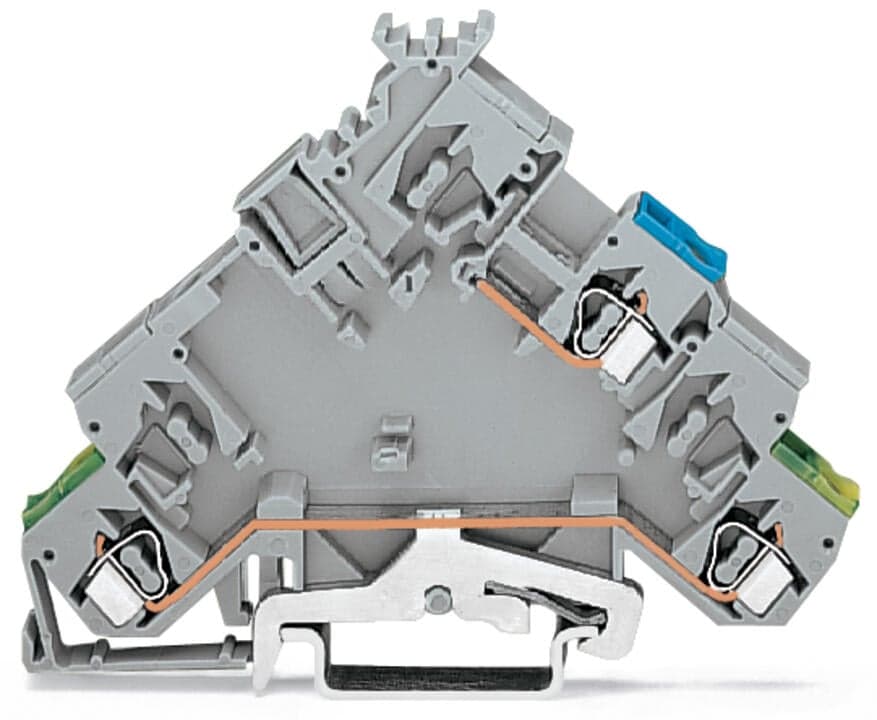

Product Model
280-593
Selling Points
- 1High-Quality Connection: Features CAGE CLAMP spring connections for secure and reliable connections.
- 2Durable Design: Constructed from polyamide (PA66) for long-lasting performance.
- 3Versatile Wiring: Supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG).
- 4Ground Contact: Includes a ground contact for added safety and stability.
- 5RoHS Compliant: Meets RoHS compliance standards with exemption, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 2 |
Number of levels | 4 | Width | 5?mm?/ 0.197?inches |
Height | 90.5?mm?/ 3.563?inches | Depth from upper-edge of DIN-rail | 63.5?mm?/ 2.5?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.346MJ | Weight | 12.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454093938 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 794494ae-c207-4feb-bcfa-51d4eb43630e | SCIP notification number (Belgium) | a70dbee4-83a8-408b-9440-8d1aa80e1277 |
SCIP notification number (Bulgaria) | 55f6a36b-8533-4cfc-9f22-0c89d6a208d3 | SCIP notification number (Czech Republic) | aa4a2c96-f366-443b-838f-6ba81c7e2318 |
SCIP notification number (Denmark) | 0b44cdf3-e3cb-40a6-9da2-61a08dd43202 | SCIP notification number (Finland) | 5fbf2016-8b55-4c92-aaf8-af58b498b5ae |
SCIP notification number (France) | e27288a5-0e25-4855-94fa-9a6805b5d73a | SCIP notification number (Germany) | e7b9069d-e074-4337-a45c-51aa95ff9aae |
SCIP notification number (Hungary) | faf0b4ec-5d7c-4d63-9a21-bed1005b3ff2 | SCIP notification number (Italy) | a3dd7707-46f7-4cdf-bb3b-6eabeb899774 |
SCIP notification number (Netherlands) | 9782f4d9-e683-42b2-9dae-d6809fb66988 | SCIP notification number (Poland) | 500d505b-4822-49d9-bcb3-4d25f4695af9 |
SCIP notification number (Romania) | ae828d79-1a35-49eb-b353-7d737052db64 | SCIP notification number (Sweden) | e76abcec-8323-47c2-bbe8-924fbd1bee1f |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 20A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.532W | Rated current I<sub>N</sub> for specified power loss | 20A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
