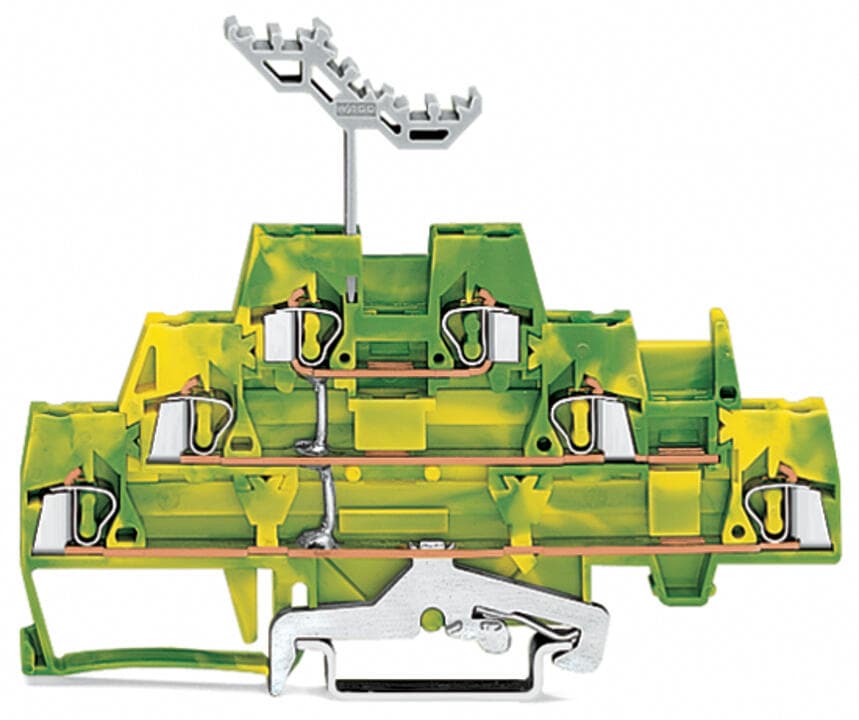

Product Model
280-597
Selling Points
- 1Grounding/Earthing Terminal Block: Ideal for grounding and earthing applications with one grounding/protective-earth terminal.
- 2Triple-Deck Design: Offers three levels of connection points, accommodating up to six conductors.
- 3CAGE CLAMP Connections: Secure and reliable spring connections for wires from 0.08mm² to 2.5mm².
- 4DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation.
- 5RoHS Compliant: Meets environmental standards with RoHS compliance, ensuring safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 1 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 103?mm?/ 4.055?inches | Depth from upper-edge of DIN-rail | 76.5?mm?/ 3.012?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.297MJ | Weight | 23g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454194628 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 934066d3-6eb7-4c67-b8a4-6157ad868575 | SCIP notification number (Belgium) | a544b4ce-2238-44db-8cfc-a91f35c17f66 |
SCIP notification number (Bulgaria) | 1c303def-9792-44e1-a4b1-e2abe9150e11 | SCIP notification number (Czech Republic) | 52feaa48-daf5-47ce-89f3-8e4780bffb03 |
SCIP notification number (Denmark) | 2eee42f5-c299-4079-9689-10ea10ce3014 | SCIP notification number (Finland) | 4e8a84f6-7b8a-4995-bd57-0be250ea022d |
SCIP notification number (France) | 60c33eda-29b5-4066-9def-e8ce4484a0ae | SCIP notification number (Germany) | 386be066-2c77-4747-821a-9d717d84cd9a |
SCIP notification number (Hungary) | cd73058b-ffc2-481a-8bc5-ffae3e4cfa9c | SCIP notification number (Italy) | 3de48560-2859-4f4d-83cd-2be604c9d054 |
SCIP notification number (Netherlands) | 9e277733-42b5-40fe-918e-ba0804320a82 | SCIP notification number (Poland) | 1635073a-ba5c-4b68-bbf2-6283b399de4a |
SCIP notification number (Romania) | 96707990-b7cc-4fae-aeb6-72fc8f8542f3 | SCIP notification number (Sweden) | a44c0356-059d-4ede-9046-cca9a98dc616 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
