Product Model
280-607
Selling Points

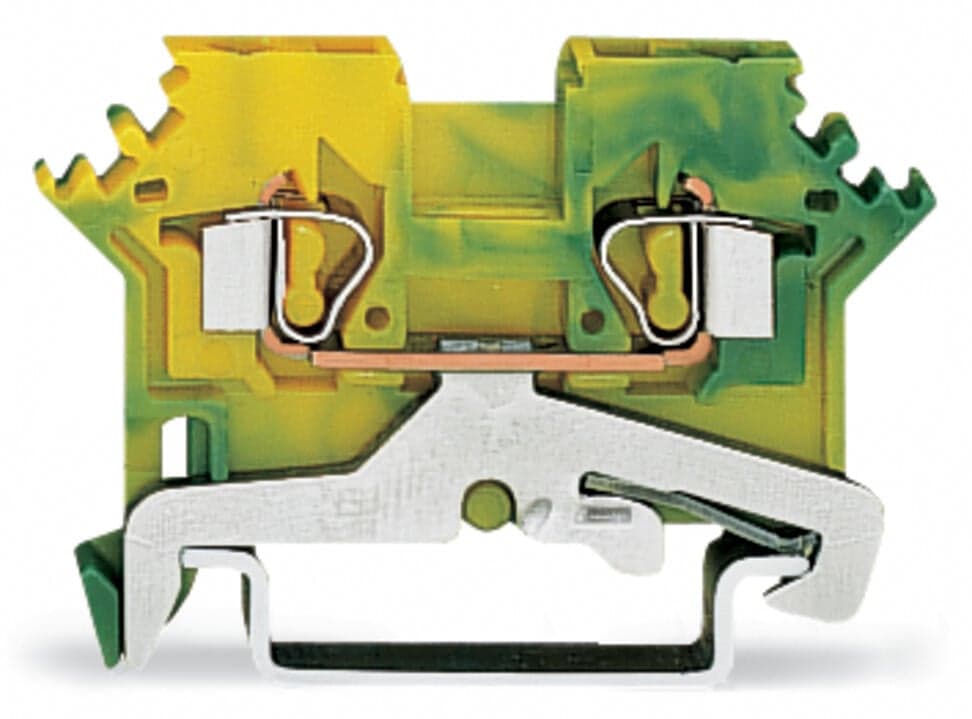

- 1The WAGO 280-607 is designed for horizontal mounting on DIN rail (35 x 15 or 35 x 7.5 mm) with a width of 5 mm.
- 2Supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG) with CAGE CLAMP spring connections.
- 3Made from PA 6.6 insulator, ensuring durability and reliability in industrial applications.
- 4Front-entry wiring with lateral marker slots for easy identification and connection.
- 5Meets UL 1059, CSA C22.2, and EN 60947 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 50?mm?/ 1.969?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.09MJ | Weight | 8.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454100087 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 57705b3f-0652-439a-8d21-127a7ae66d00 |
SCIP notification number (Belgium) | cb1b67fc-d4dd-49b2-aa44-0e8b083e49b5 | SCIP notification number (Bulgaria) | 659a64c0-ab69-4e56-b8ff-861cbb8b6ba1 |
SCIP notification number (Czech Republic) | dc08b88a-6808-42ca-94e9-f11217c9f70c | SCIP notification number (Denmark) | a21762b5-8b31-4f42-b209-f96faa49eee9 |
SCIP notification number (Finland) | 5fa93fc1-6fa1-433d-889c-c29035c08ab6 | SCIP notification number (France) | 0c50c87a-18d7-4ec9-8ad4-c1f5a99367d6 |
SCIP notification number (Germany) | 553a54f6-0692-4a07-b22d-0f5b23aff09f | SCIP notification number (Hungary) | da775a60-1fa3-445f-ae35-48cc9d3804cd |
SCIP notification number (Italy) | e60e5315-3253-4a75-b8f5-f9cbad2d0590 | SCIP notification number (Netherlands) | 9d919c9c-5fb2-4c27-84cc-f2a991423668 |
SCIP notification number (Poland) | af1882c8-85d2-4221-9246-e0e1e305ed45 | SCIP notification number (Romania) | a975541b-8238-43c9-b458-7904ec29bfd0 |
SCIP notification number (Sweden) | 21b71d6e-f8d8-4f7a-9898-4af9be7adf8b | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
