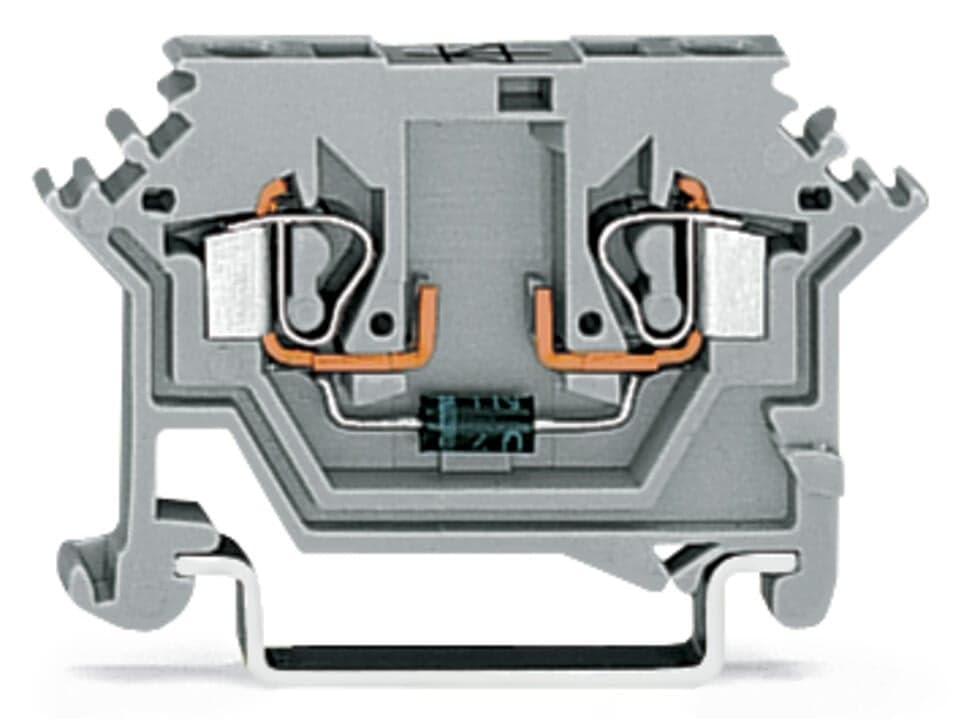

Product Model
280-613/281-410
Selling Points
- 1Durable DIN Rail Mounting: Designed for easy installation on 35 mm DIN rails.
- 2Corrosion Protection: Prevents electrolytic corrosion between aluminum and copper conductors.
- 3Reliable Spring Pressure Connection Technology: Fast, vibration-proof, and maintenance-free.
- 4Wide Conductor Compatibility: Suitable for solid aluminum conductors up to 4 mm²/12 AWG with WAGO “Alu-Plus” Contact Paste.
- 5High-Temperature Rating: Operates within -35 to 85°C, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 50?mm?/ 1.969?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.167MJ | Weight | 4.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454194673 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 40f6c228-1795-4b06-b1e9-2cb58d5d8f45 |
SCIP notification number (Belgium) | 9f5e0a03-c4ef-4b7e-b8e4-8984ffc52012 | SCIP notification number (Bulgaria) | a7bf7d27-b764-402d-8fcd-dfc8365e786b |
SCIP notification number (Czech Republic) | c7982ded-5bc4-4f09-91c9-ca477194bfdb | SCIP notification number (Denmark) | c7f37d77-69e2-4b4c-9412-3d89d11a5d7f |
SCIP notification number (Finland) | 6edad19b-fb8c-4571-8ac6-2e06e4586257 | SCIP notification number (France) | 3c97709d-17e8-4ceb-a7e2-06d0ff2afeaf |
SCIP notification number (Germany) | e779d795-99c0-48ab-a3a9-8ee4c603b7f6 | SCIP notification number (Hungary) | 448c59b5-3a51-4940-baea-6e0e2dbe21b5 |
SCIP notification number (Italy) | 78cc1db2-c17c-4b58-86b0-5bdeb0359deb | SCIP notification number (Netherlands) | 860cc052-b5c1-42ea-9339-9c814ca16201 |
SCIP notification number (Poland) | cc02539f-220d-4d48-9cf4-f505ec2ddaa0 | SCIP notification number (Romania) | 0ced480d-bb82-4886-a935-a67df38e055b |
SCIP notification number (Sweden) | 18fbbee6-4885-432d-90f2-d0b691ac3349 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
