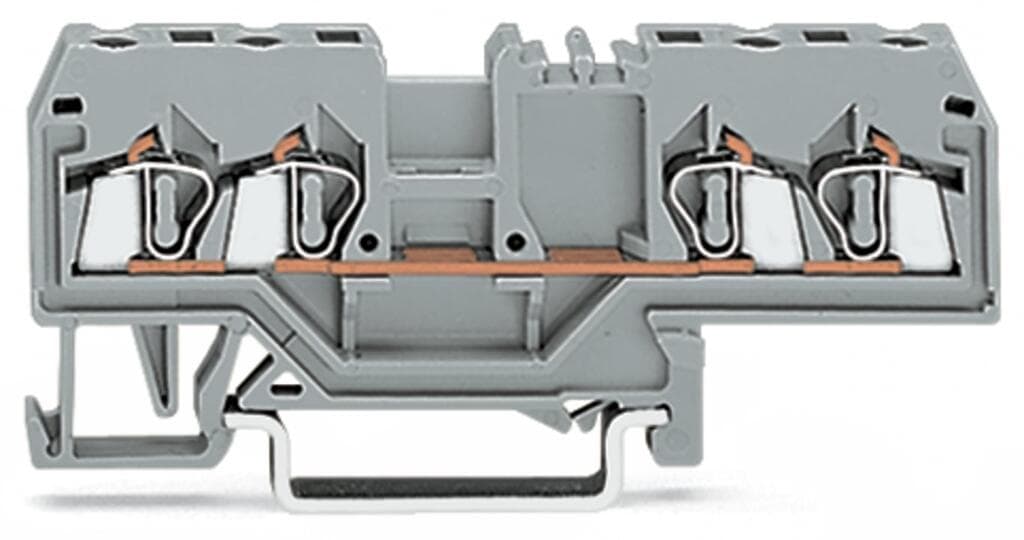

Product Model
280-634
Selling Points
- 1Prevents electrolytic corrosion between aluminum and copper conductors.
- 2Compatible with DIN-35 rail (35 x 15 / 35 x 7.5) for easy installation.
- 3Secure and reliable spring connections for solid and stranded conductors.
- 4Suitable for hazardous environments with center marking for safety.
- 5Designed to withstand high voltage (800 VAC) and current (20 A).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 75?mm?/ 2.953?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.237MJ |
Weight | 9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918311168 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 20A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 20A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 24A | Power loss, per pole (potential) | 0.532W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
