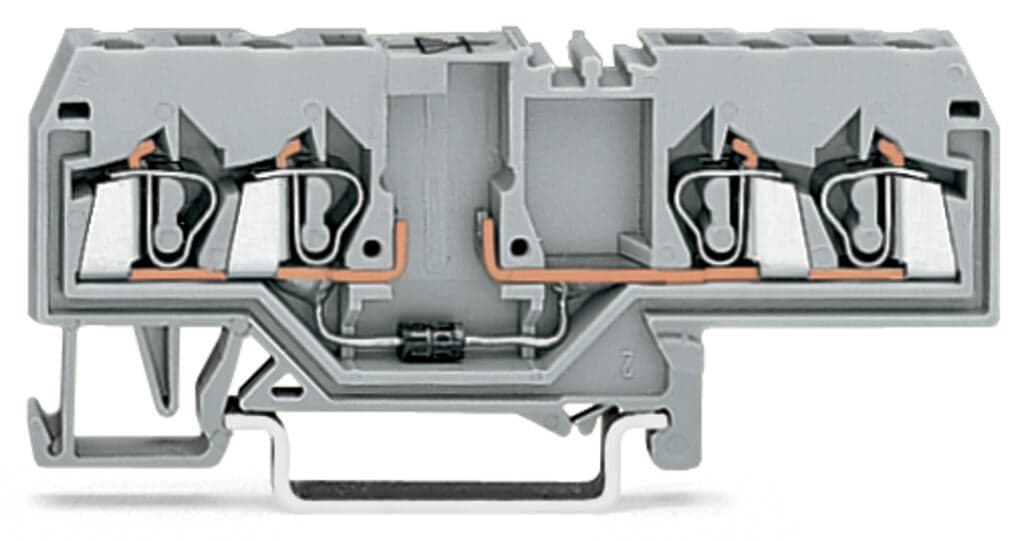

Product Model
280-655/281-410
Selling Points
- 1High-Quality DIN-Rail Mounting: Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 24-Conductor Design: Supports four wire connections with diode 1N4007.
- 3Secure Wiring with CAGE CLAMP: Utilizes CAGE CLAMP spring connections for secure and reliable wiring.
- 4Versatile Conductor Compatibility: Suitable for wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG.
- 5Compliant with Industrial Standards: Meets certifications from Det Norske Veritas, Germanischer Lloyd, and EN 60947.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 75?mm?/ 2.953?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.16MJ | Weight | 9.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821275435 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 3bd91680-baca-466f-9134-9e74ddddf562 |
SCIP notification number (Belgium) | f323c9b6-9710-4d68-83d5-ad5e1ef500eb | SCIP notification number (Bulgaria) | 66cd7245-bed1-41d8-86f9-f1c58aa5e411 |
SCIP notification number (Czech Republic) | f2c78f5b-9a81-459e-afeb-d7ec26448a94 | SCIP notification number (Denmark) | f129721b-1638-4fe6-a580-e071ab37cdc2 |
SCIP notification number (Finland) | ea1c7a41-86fb-4917-aeff-d5214f9e34bf | SCIP notification number (France) | 474a2a28-6c22-4d9a-9ebe-894a46198d4e |
SCIP notification number (Germany) | cf9ff4c7-58a1-4859-b501-3dca212da2f0 | SCIP notification number (Hungary) | c39769a1-2edc-4cde-9913-8449fc3437df |
SCIP notification number (Italy) | b1bab4a7-a363-4f3b-adec-1bba2fc8ffb6 | SCIP notification number (Netherlands) | 9d00daa1-47af-411a-a45b-1c9521cfcd2c |
SCIP notification number (Poland) | c1c254b9-3802-4e64-98dd-2f9f12119f23 | SCIP notification number (Romania) | df957c11-6c68-4e15-8b10-cf7c54e211d3 |
SCIP notification number (Sweden) | cdf63de1-6ee2-4db8-afd2-4034f4c79c22 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
