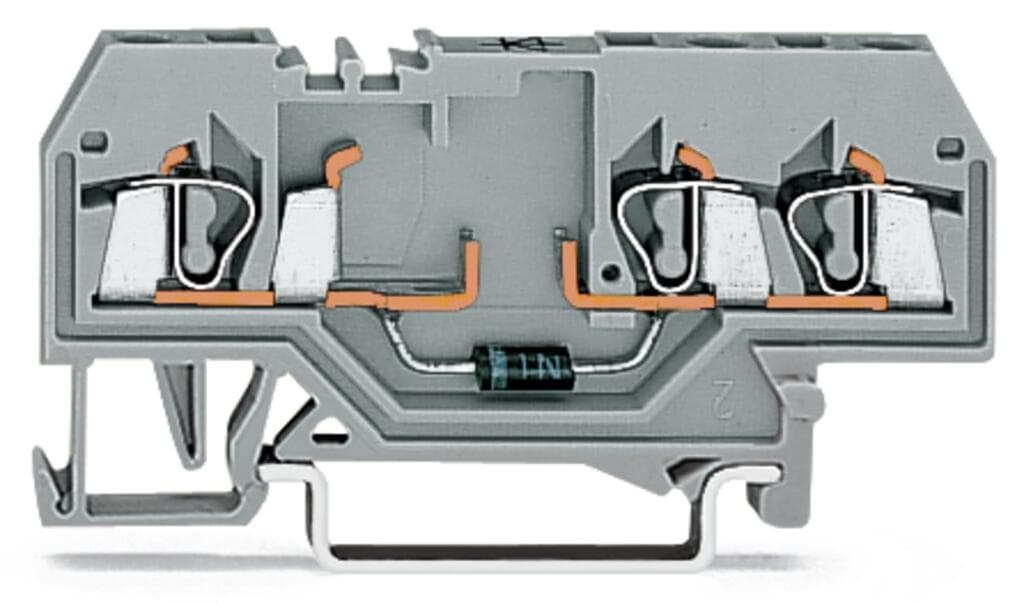

Product Model
280-673/281-410
Selling Points
- 1Designed for DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation.
- 2Equipped with a 1N4007 diode for enhanced protection against voltage spikes.
- 3Provides secure and reliable connections using spring clamp technology.
- 4Rated for 0.5 A, suitable for various industrial applications.
- 5Made from polyamide (PA66) for insulation and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 64?mm?/ 2.52?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.137MJ | Weight | 8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821275459 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 7924119f-5805-4277-8edd-a420765a34ac |
SCIP notification number (Belgium) | fbacfe6a-18d6-415f-a9c7-b719b5a7fa3c | SCIP notification number (Bulgaria) | acbf6bdf-7b25-4424-9986-f2c60c6d65f7 |
SCIP notification number (Czech Republic) | 3df6216e-5da1-4069-ae61-02731ae70717 | SCIP notification number (Denmark) | 2c48daf7-d566-40d3-be4e-aad84c2a8206 |
SCIP notification number (Finland) | c0df019f-94c0-4239-a175-829a12b7b95a | SCIP notification number (France) | a2affe31-b47c-4a0a-b424-78425d3e6d26 |
SCIP notification number (Germany) | 9df19bb9-c8a1-4946-bec2-e9621c178bdd | SCIP notification number (Hungary) | cbec5cee-769e-401e-b1c4-a61ec7f853f4 |
SCIP notification number (Italy) | 7ca35832-3cf4-42c5-9428-152a01c9da89 | SCIP notification number (Netherlands) | c16f294e-f284-4466-884f-1afdac25740e |
SCIP notification number (Poland) | 6625224b-8dec-4e29-9577-f168bf996fbc | SCIP notification number (Romania) | a629d212-b38c-429a-8c2f-ea4154a09ddb |
SCIP notification number (Sweden) | 477cba4d-9408-44b6-8171-183a0e2c9e3e | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
