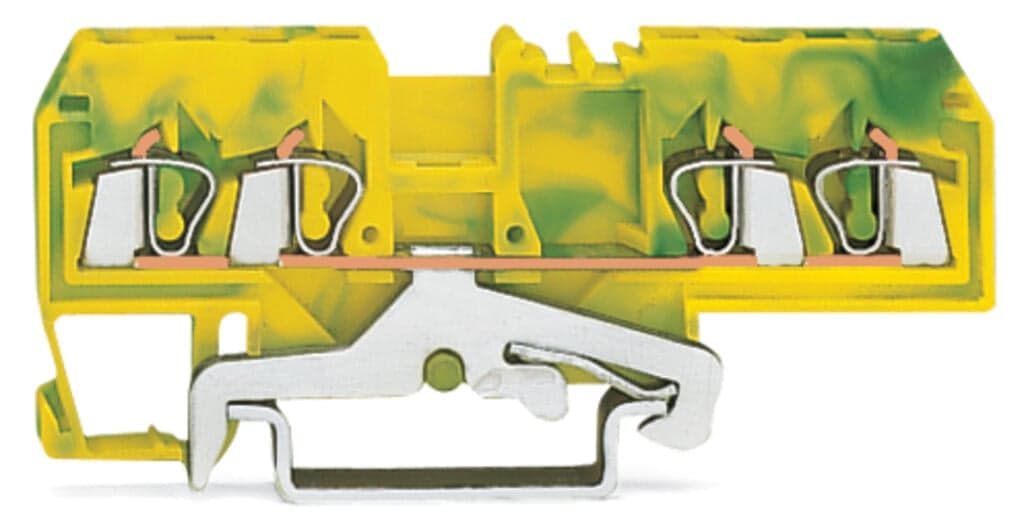

Product Model
280-677/999-950
Selling Points
- 1Designed for hazardous environments with high safety standards.
- 2Secure and reliable spring connections for wires up to 2.5 mm².
- 3Easy installation on DIN-35 rail (35 x 15 and 35 x 7.5).
- 4Convenient for wire identification and organization.
- 5Durable and visually distinct for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 75?mm?/ 2.953?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.132MJ | Weight | 12.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454100919 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | b1e2ee6c-0dc0-45f6-854a-5e7d420550f8 |
SCIP notification number (Belgium) | b5de7043-c18a-4fda-9c4d-0a46335e8ebb | SCIP notification number (Bulgaria) | c0b5d943-5487-47d5-9d3a-89bbbfc492a9 |
SCIP notification number (Czech Republic) | ba39176b-77d3-4893-b06f-c3c73b32903e | SCIP notification number (Denmark) | 64ea0563-b7f4-4e71-85f9-8000be18f4e7 |
SCIP notification number (Finland) | e3739a74-3955-429d-afae-839e31489054 | SCIP notification number (France) | 3657878f-0bc7-4f74-b74a-ddf602afecf0 |
SCIP notification number (Germany) | 6c1945a9-5a63-4b41-ac01-a62647a03183 | SCIP notification number (Hungary) | fd40acd4-77d4-4856-84d4-33d3ddcbe8d9 |
SCIP notification number (Italy) | b570c0d0-bb3a-4472-b182-9e5261fa53df | SCIP notification number (Netherlands) | 6eba00f7-289c-4d63-8eec-456808f8aab2 |
SCIP notification number (Poland) | b1347afe-fa9a-4c55-a505-8a7483872949 | SCIP notification number (Romania) | fa12dc59-41cc-4b61-918e-d4c111d8d762 |
SCIP notification number (Sweden) | 860ae128-d0b5-4f9b-ae63-dcb8994d8b99 | Ratings per | IEC/EN 60947-7-2 |
Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
