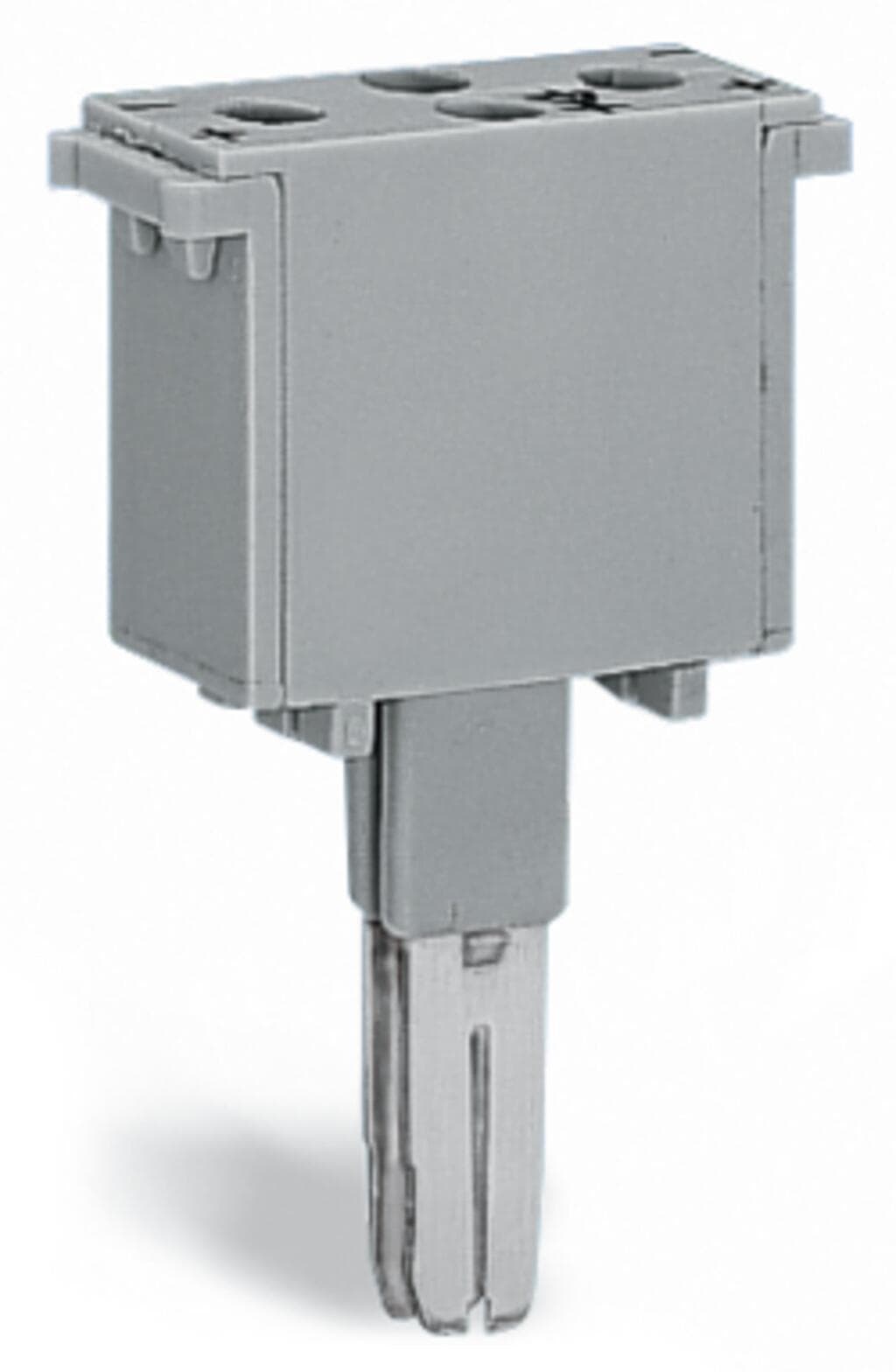

Product Model
280-803/281-411
Selling Points
- 110 mm wide, perfect for space-saving applications.
- 2Equipped with a 1N4007 diode for efficient rectification.
- 3Plug-in mounting ensures quick and secure connection.
- 4Constructed with durable materials for long-lasting performance.
- 5Compatible with various carrier terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.141MJ | Weight | 4.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-49 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC002018 |
ETIM 8.0 | EC002018 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454195977 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 950e2d45-1f8c-444c-8b20-8c55091c9fe4 |
SCIP notification number (Belgium) | 9bb8627c-95e1-457f-ad19-4b97471f526c | SCIP notification number (Bulgaria) | 6e866d1f-9c70-4740-9e21-bad879e77d6c |
SCIP notification number (Czech Republic) | 73fb68b9-0c5b-49ae-9347-eb50591b7eca | SCIP notification number (Denmark) | f5a898a6-6782-4e3d-b893-0002ef518999 |
SCIP notification number (Finland) | b345caeb-9185-43c7-8c68-1de2c5288a65 | SCIP notification number (France) | 878d541e-1ff9-459b-ab55-2c7ee431fd44 |
SCIP notification number (Germany) | 220c8309-2621-4efb-9c6a-2f226f494a70 | SCIP notification number (Hungary) | 496f5d8a-34a6-4ae6-bf6d-33f8fad2e488 |
SCIP notification number (Italy) | f309b228-6114-4a7d-976d-199216381035 | SCIP notification number (Netherlands) | b92fbf35-de69-4618-b4b5-2e6268f5b1ce |
SCIP notification number (Poland) | 49191cf4-7cd3-42e3-a414-abfc52898f2c | SCIP notification number (Romania) | 7fd5b189-3da5-480b-a601-f059bcb73d13 |
SCIP notification number (Sweden) | 20810b80-275d-4058-bcf3-891063221d69 | Rated current | 0.5A |
Operation status indicator | None | Nominal voltage | 250V |
Reverse voltage | 1,000V | Actuation type | Operating tool |
Specifications may be subject to change without notice
