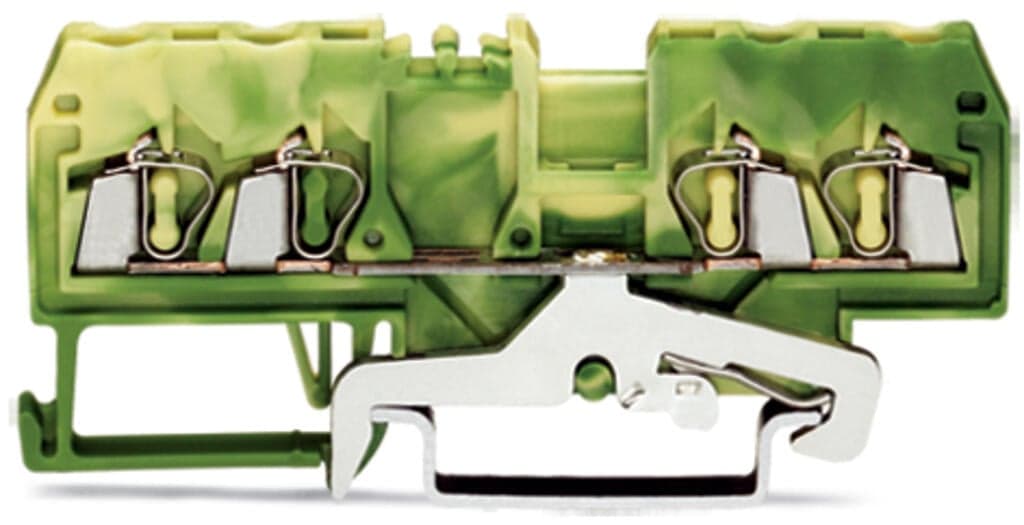

Product Model
280-837
Selling Points
- 1Built with polyamide 6.6 insulator for long-lasting performance.
- 2Accommodates wire sizes from 28 to 12 AWG.
- 3Front-entry wiring design simplifies terminal block mounting.
- 4Supports up to 20 A of current.
- 5Meets RoHS and UL94V-0 flammability standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 75?mm?/ 2.953?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.128MJ | Weight | 12.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454100155 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 837e6bb5-453d-42a3-a091-2bce9e202f31 | SCIP notification number (Belgium) | 6dc24749-7db7-4a67-a90d-99df01cbd910 |
SCIP notification number (Bulgaria) | 28446658-4e03-49f1-86c5-9044166b5ca2 | SCIP notification number (Czech Republic) | a6fc81cb-c306-48ab-a3a2-61d856bc5450 |
SCIP notification number (Denmark) | af00d988-5ad8-43a2-a0bd-2f55bf005fe3 | SCIP notification number (Finland) | b838548b-27f4-432e-995d-d6f010ddc054 |
SCIP notification number (France) | f8624fab-28b1-4e5c-884b-281889e245b6 | SCIP notification number (Germany) | 6b0e7913-f1f6-4653-a250-30db25b5f00f |
SCIP notification number (Hungary) | fd0a1981-92f6-4956-b0c0-4e68d5a0b824 | SCIP notification number (Italy) | 0a2e426f-fe6d-4c6d-9e2c-87aece3b0782 |
SCIP notification number (Netherlands) | a174c4d2-000e-4f7e-8a30-e51b04f3a2ef | SCIP notification number (Poland) | 1b17d4fc-4891-4ede-9f5e-785666f7b66c |
SCIP notification number (Romania) | 1f7e99cb-0d5d-4b6b-bab1-1e3f3f7f9434 | SCIP notification number (Sweden) | 835a7ae4-0ed9-47ef-84bc-ec0d7a8bac18 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
