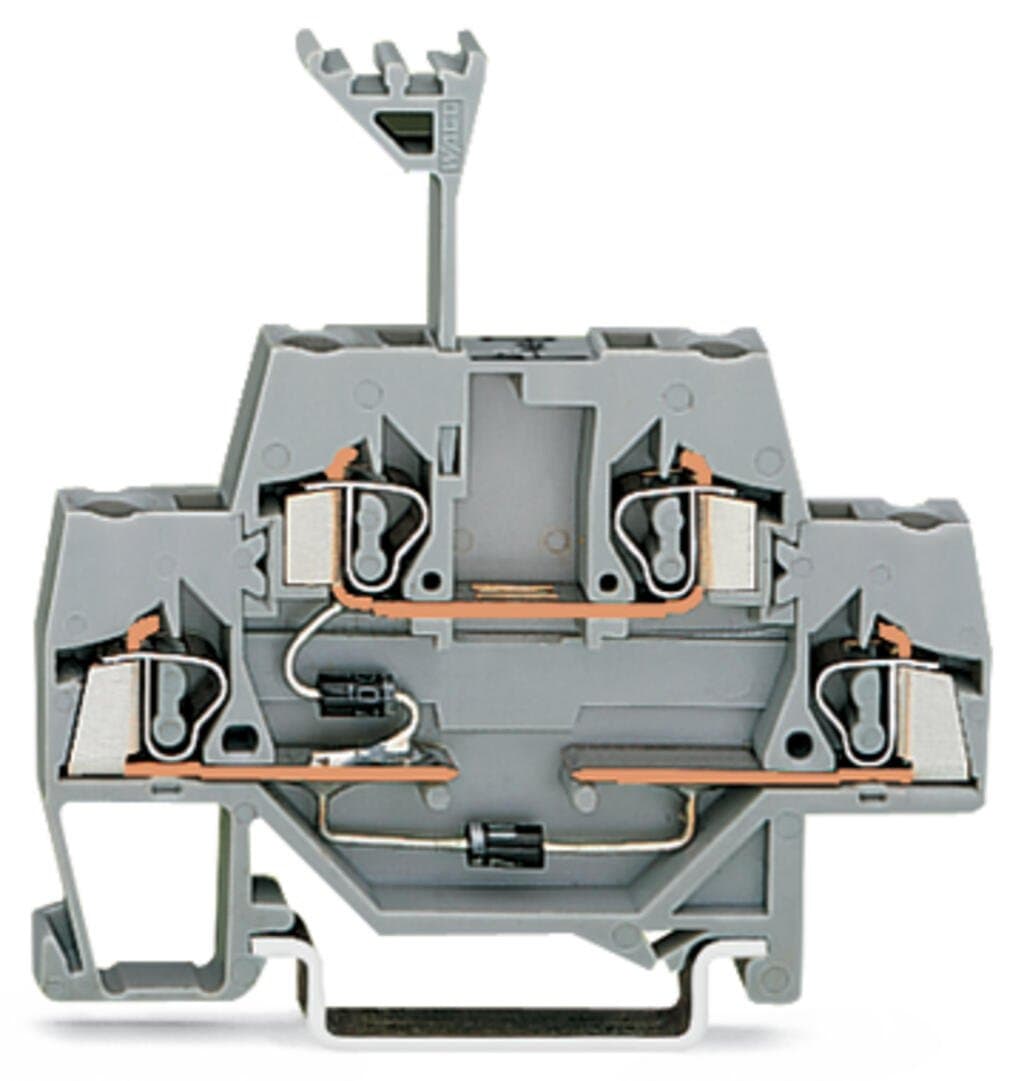

Product Model
280-941/281-491
Selling Points
- 1DIN-Rail Mounting Compatibility: Designed for DIN-rail 35 x 15 and 35 x 7.5.
- 2CAGE CLAMP Technology: Secure connection with minimal labor hours.
- 3Diode Protection: Equipped with 2 diodes 1N4007 for added protection.
- 4Versatile Conductor Compatibility: Connects both copper and aluminum conductors.
- 5Compact Design: Ideal for space-efficient applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 64?mm?/ 2.52?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.26MJ | Weight | 10.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454196707 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | a41dddf8-b510-497b-b013-ad61c7b60967 |
SCIP notification number (Belgium) | 20e5512e-412e-4b2c-80b7-e2cc02ca13d0 | SCIP notification number (Bulgaria) | 268b7d6f-4420-42c1-b990-1d4f3c2e11ea |
SCIP notification number (Czech Republic) | 9683d7fe-727f-478a-8047-8ffff3f2a81a | SCIP notification number (Denmark) | c0f359de-38a0-4b47-816d-f1df7277ea30 |
SCIP notification number (Finland) | 86d76b96-8dc7-4cc8-beb0-00ff268ea49f | SCIP notification number (France) | f245813c-daa1-4388-9e9e-6f902fb76551 |
SCIP notification number (Germany) | b5473da9-9583-412c-86ee-1823fda8d1f4 | SCIP notification number (Hungary) | a5bf9879-e2f8-4630-bed7-d60676deda5c |
SCIP notification number (Italy) | 04bd425e-58f8-4048-adf4-35edeed88b3c | SCIP notification number (Netherlands) | 1c4a8c65-355e-4775-9fc3-7c80803d7a22 |
SCIP notification number (Poland) | b04e43b5-9b9d-4576-84be-9e87904736f6 | SCIP notification number (Romania) | 7a03d51a-8e8e-42de-8d6b-493935e58296 |
SCIP notification number (Sweden) | 3988d512-fa21-4c8a-a402-5699f9ae5c12 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
