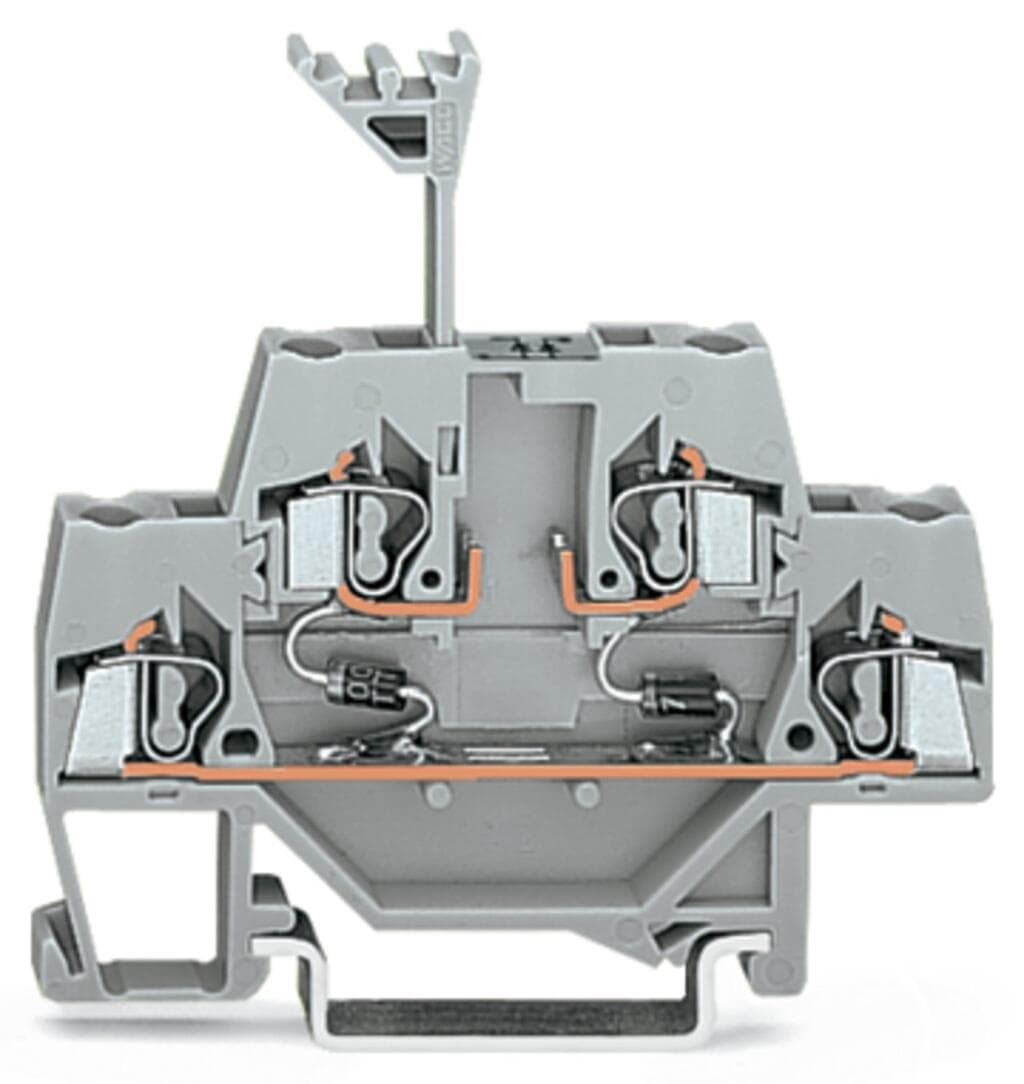

Product Model
280-942/281-488
Selling Points
- 1Equipped with WAGO's CAGE CLAMP technology for secure and efficient connections.
- 2Double-deck construction with 2 diodes 1N4007 for long-term protection against corrosion.
- 3Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation in various applications.
- 4Rated for 0.5 A, suitable for a wide range of electrical projects.
- 5Measuring 64 mm in depth and 5 mm in width, perfect for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 64?mm?/ 2.52?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.26MJ | Weight | 10.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454196783 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 74fcd7e8-90ae-4573-9968-9f4ff05722a7 |
SCIP notification number (Belgium) | 5bcc365f-c797-4451-8d69-f27bd348d1c3 | SCIP notification number (Bulgaria) | 00cbb84f-9b1f-4c51-b9d8-8b1b4ae56781 |
SCIP notification number (Czech Republic) | dab87d06-f77c-4d02-b562-514a1fc096a3 | SCIP notification number (Denmark) | f93d4336-0d01-418d-85f8-4b647396bf3c |
SCIP notification number (Finland) | a7fa986d-0abe-4bce-8275-ad3d2bb36297 | SCIP notification number (France) | 455d0a14-43e8-4179-9dc0-377c4e616fcd |
SCIP notification number (Germany) | 9247dd4d-dc9d-4524-aec0-46b9e51cfba3 | SCIP notification number (Hungary) | e11ddaaa-fd33-4050-bf87-9d164dd1d7c0 |
SCIP notification number (Italy) | 802b6d1d-482e-4378-a521-23f971d0bd37 | SCIP notification number (Netherlands) | 480d1f8c-9f71-4adc-b793-130324e0bf13 |
SCIP notification number (Poland) | 3680b1c4-382d-474b-8ce0-eb57248a6cb6 | SCIP notification number (Romania) | 9240392a-c2ee-44ab-b668-97fd18c8d7e5 |
SCIP notification number (Sweden) | f06728c9-c815-46d1-a33f-9159ad8a0de6 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
