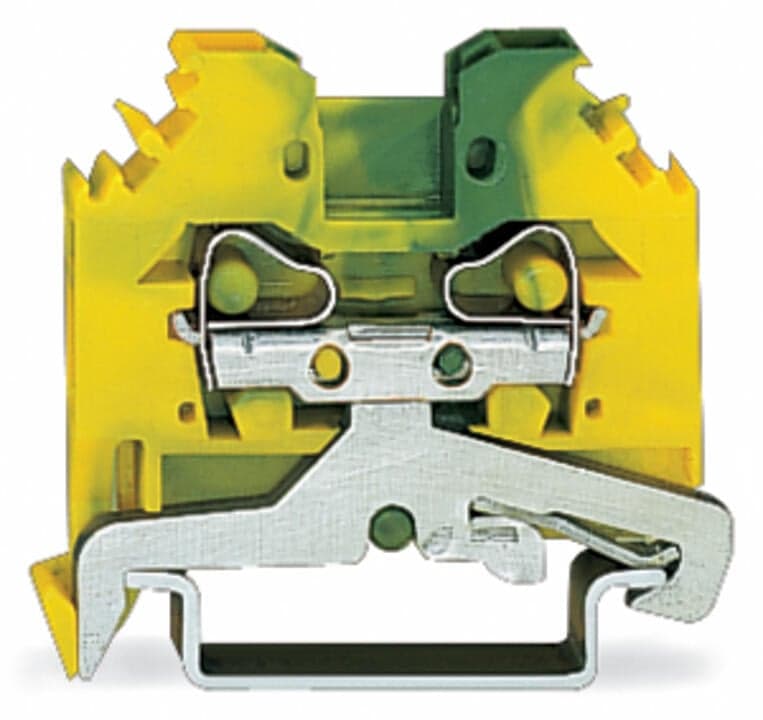

Product Model
281-107
Selling Points
- 1Mounts securely on DIN rail 35 x 15 and 35 x 7.5.
- 2Ensures reliable connections with minimal oxidation.
- 3Supports up to 800V with a nominal current of 32A.
- 4Compatible with wire sizes from 28AWG to 12AWG.
- 5Meets IEC/EN 60947-7-2 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 45?mm?/ 1.772?inches | Depth from upper-edge of DIN-rail | 32.5?mm?/ 1.28?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.096MJ | Weight | 10.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | IN | GTIN | 4055143309271 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 9c17b476-5c9e-4453-8559-58f72f0560a9 | SCIP notification number (Belgium) | 59a53fb7-15a7-41a8-bc9a-93282df2ff94 |
SCIP notification number (Bulgaria) | 80c3d130-0919-49ef-889a-cd2455eb6969 | SCIP notification number (Czech Republic) | 3a2ea5e3-2d94-4c84-9cac-c4acfaa8663d |
SCIP notification number (Denmark) | 9b6ed5b1-6636-4bf5-b128-fe28c583d201 | SCIP notification number (Finland) | e56d3fa7-e762-479a-97da-21d764fa1d91 |
SCIP notification number (France) | a4193d82-eeac-47cd-a92e-1820914fb339 | SCIP notification number (Germany) | 29d6ca8a-144a-4ba2-acee-e62c17fbc63b |
SCIP notification number (Hungary) | bc6eb6d1-6b1d-43c7-8615-4e57c54a4c03 | SCIP notification number (Italy) | 6874dd9f-8cc2-489f-bae3-f85e055bb85a |
SCIP notification number (Netherlands) | 9344bccb-d345-4224-af1e-0d2c93af069e | SCIP notification number (Poland) | e1e326e5-0c39-4007-b1c8-59ce6a8531c5 |
SCIP notification number (Romania) | 04e3b75a-f8c4-427f-a6fd-16dea1176405 | SCIP notification number (Sweden) | b916946a-118b-4ceb-bbc9-6f1a2fbf6ecd |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
