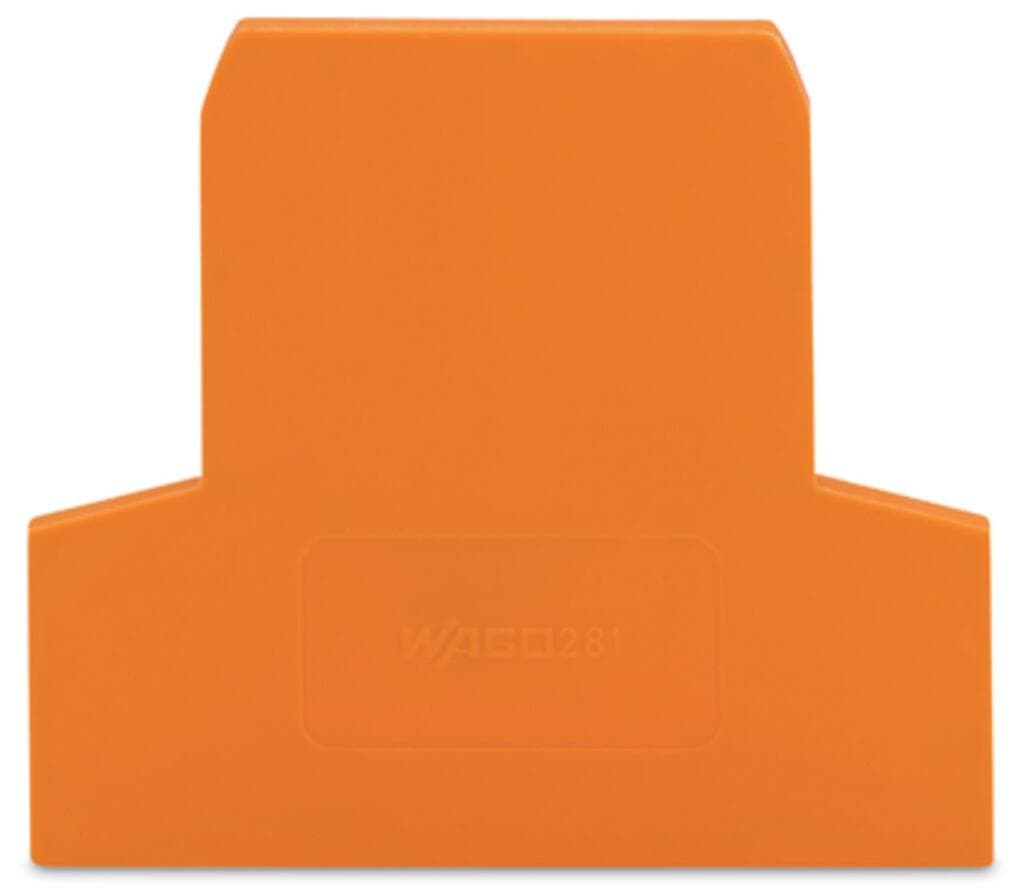

Product Model
281-309
Selling Points
- 1High-Quality Material: Made from durable 2.5 mm thick material.
- 2Fire Load Resistance: Meets 0.1 MJ fire load specifications.
- 3Compact Design: Dimensions: 2.36 in H x 0.098 in W x 2.36 in D.
- 4Easy Installation: Compatible with 281 Series Rail Mounted Terminal Blocks.
- 5Reliable Performance: Orange color ensures visibility and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 60?mm?/ 2.362?inches |
Depth | 55.3?mm?/ 2.177?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.1MJ | Weight | 3.3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291071 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
