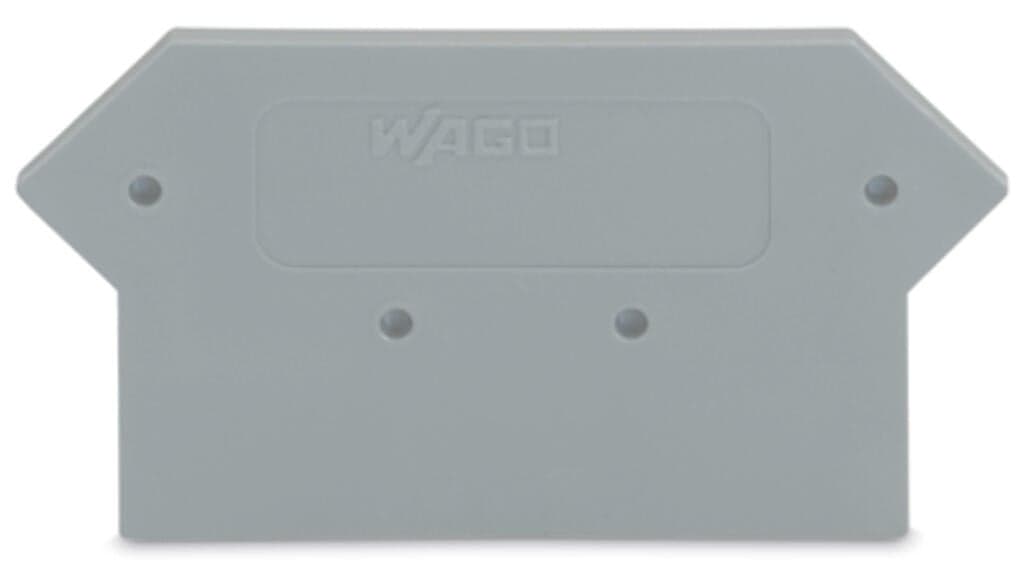

Product Model
281-316
Selling Points
- 1Made from durable, 3mm thick material for long-lasting performance.
- 2Meets 0.084 MJ fire load specifications for enhanced safety.
- 3Snap-in design for quick and effortless installation.
- 4Durable gray finish that resists corrosion and wear.
- 5Ensures environmental sustainability and compliance with regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 53?mm?/ 2.087?inches |
Depth | 29?mm?/ 1.142?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.084MJ | Weight | 2.8g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332295468 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
