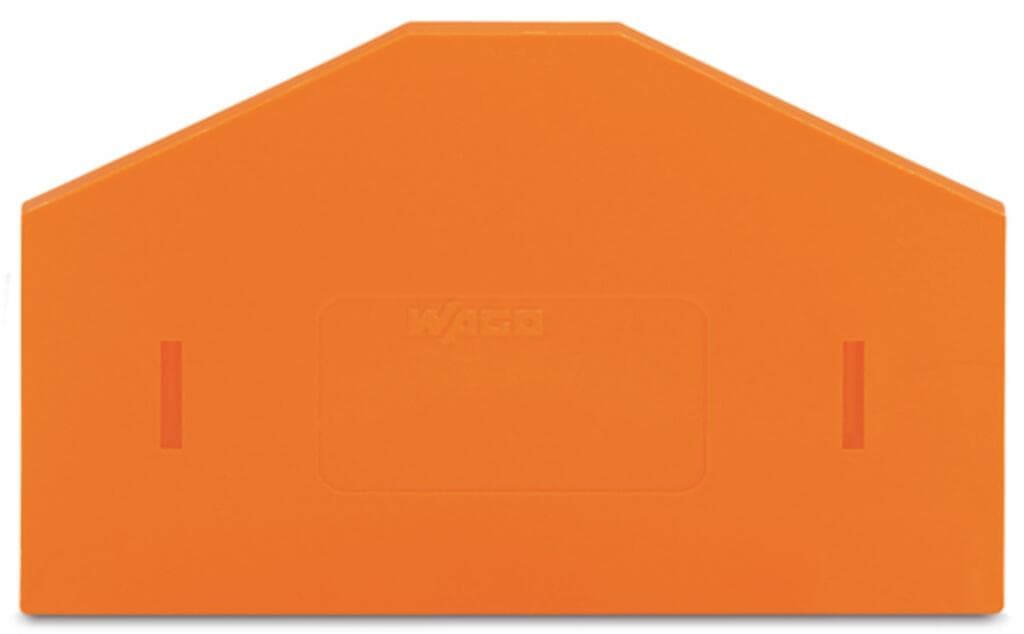

Product Model
281-318
Selling Points
- 1Robust Construction: Made from 2 mm thick material for enhanced durability.
- 2Easy Installation: Designed for seamless integration with WAGO's 281 series rail-mounted terminal blocks.
- 3High Separation: Provides effective separation between electrical components, ensuring safety and efficiency.
- 4Compliance: Meets RoHS compliance standards for environmental sustainability.
- 5Versatile Usage: Suitable for various electrical applications, including industrial and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 61?mm?/ 2.402?inches |
Depth | 39?mm?/ 1.535?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.102MJ | Weight | 3.1g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332295475 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
