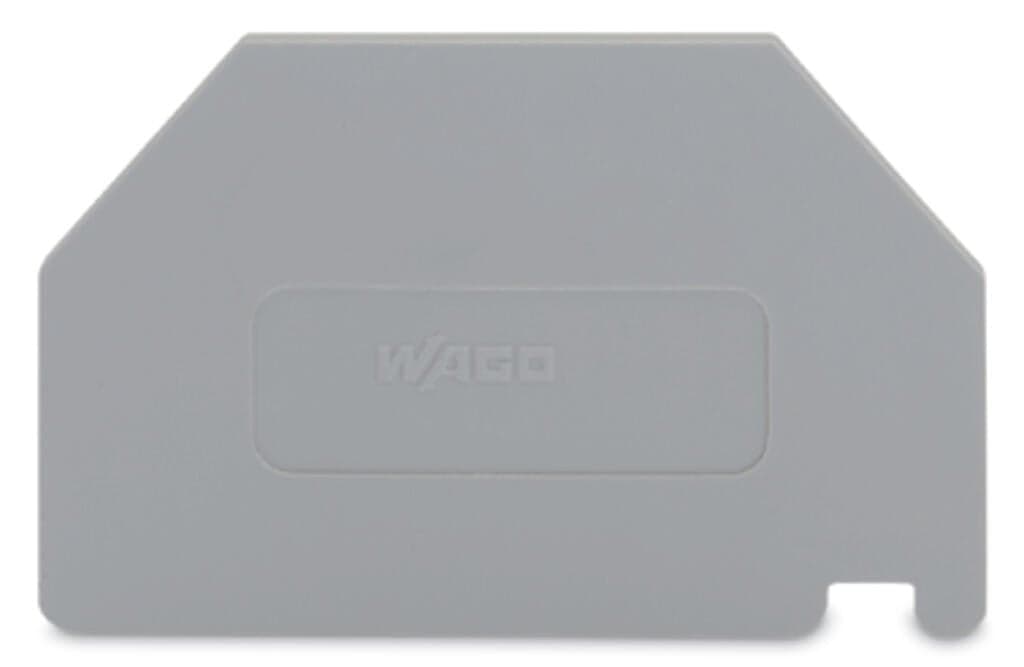

Product Model
281-332
Selling Points
- 1High-Quality Material: Made from durable, 2 mm thick material for long-lasting performance.
- 2Oversized Design: Enhanced size for better functionality and easier installation.
- 3Gray Color: Durable gray finish for easy identification and integration.
- 4DIN Rail Compatible: Designed for use with DIN rail systems, ensuring seamless integration.
- 5Cost-Effective: Available in quantities of 25, offering a cost-effective solution for your electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 50?mm?/ 1.969?inches |
Depth | 33.3?mm?/ 1.311?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.119MJ | Weight | 2.6g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332292603 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
