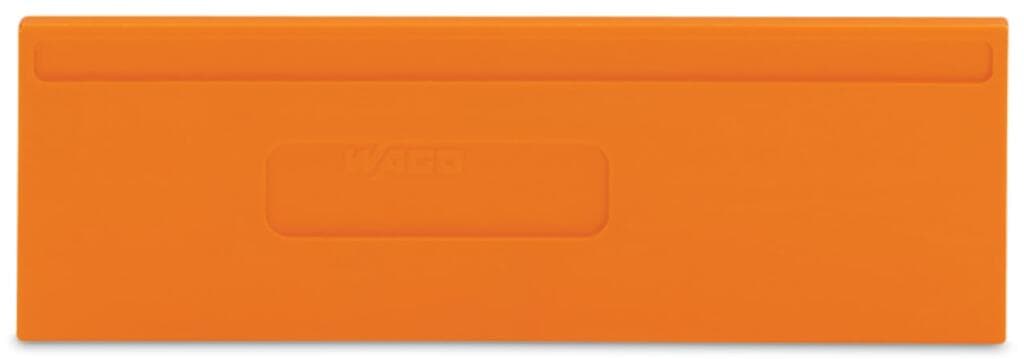

Product Model
281-339
Selling Points
- 1Automatic clamping mechanism ensures secure wire connections without damage.
- 2Designed with stainless steel clamping mechanism for durability and consistent performance.
- 3Ideal for space-constrained applications with a terminal block width of 4.2 mm.
- 4No need for wire preparation like crimps, ferrules, or tinning; simply strip the wire.
- 5Suitable for various wire sizes from 0.25 mm² to 1.5 mm² and rated for up to 800 V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 85.8?mm?/ 3.378?inches |
Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.089MJ | Weight | 3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332291033 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
