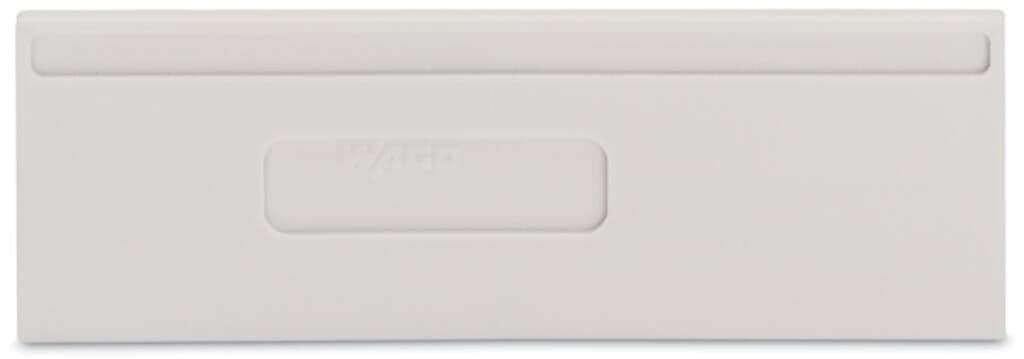

Product Model
281-347
Selling Points
- 1High-Quality Material: Made from polyamide (PA66) for excellent insulation properties.
- 2Fire Safety: Compliant with UL94 V0 flammability class, ensuring a fire load of 0.1 MJ.
- 3Oversized Design: 2 mm thick and oversized for enhanced durability and functionality.
- 4Light Gray Color: Easy to integrate into various electrical systems with its light gray color.
- 5RoHS Compliant: Meets environmental standards, ensuring no harmful substances are used in its production.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 85.8?mm?/ 3.378?inches |
Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.1MJ | Weight | 2.9g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332199278 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
