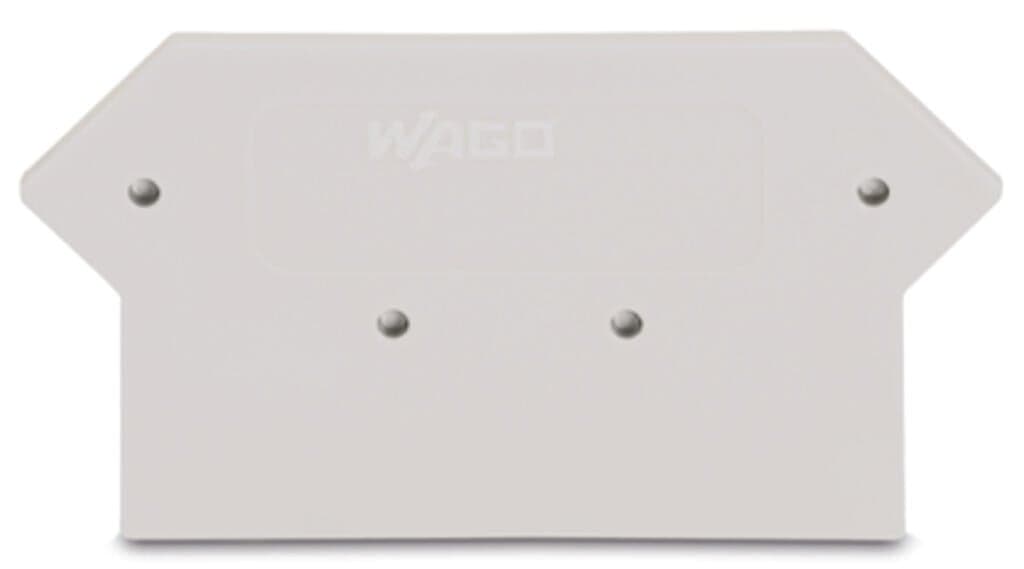

Product Model
281-353
Selling Points
- 13mm Thick and Light Gray: Durable and visually distinct.
- 2RoHS Compliant: Meets environmental product compliance standards.
- 3Ideal for Rail-Mounted Terminal Blocks: Designed for precise electrical connections.
- 4Available in Packs of 25: Convenient for bulk purchases.
- 5Flammability Class V0: Ensures high fire safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 53?mm?/ 2.087?inches |
Depth | 29?mm?/ 1.142?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.084MJ | Weight | 2.8g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332199308 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
