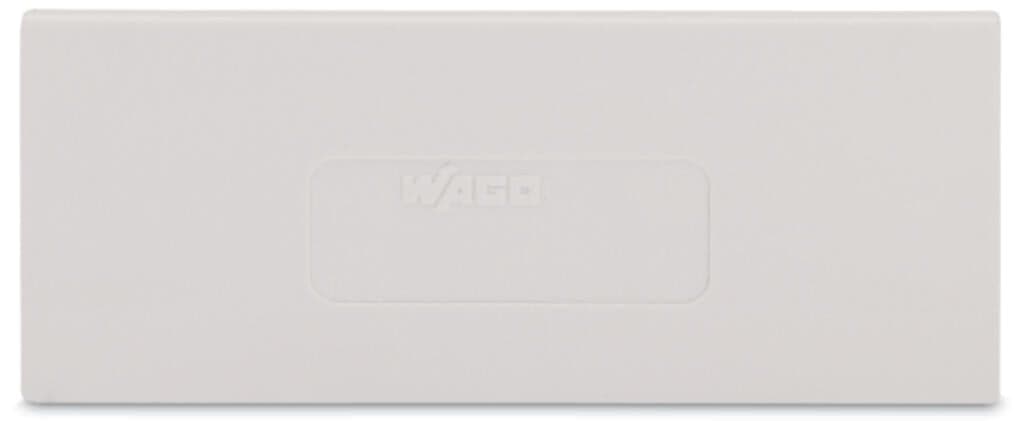

Product Model
281-356
Selling Points
- 1Oversized Design: 2mm thick for enhanced durability and separation.
- 2Light Gray Color: Easy to identify and integrate into your system.
- 3High-Quality Material: Made from robust materials for long-lasting performance.
- 4Versatile Usage: Suitable for various industrial applications and configurations.
- 5Compliant with ROHS Standards: Ensures environmental safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 73.2?mm?/ 2.882?inches |
Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.091MJ | Weight | 3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332199322 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
