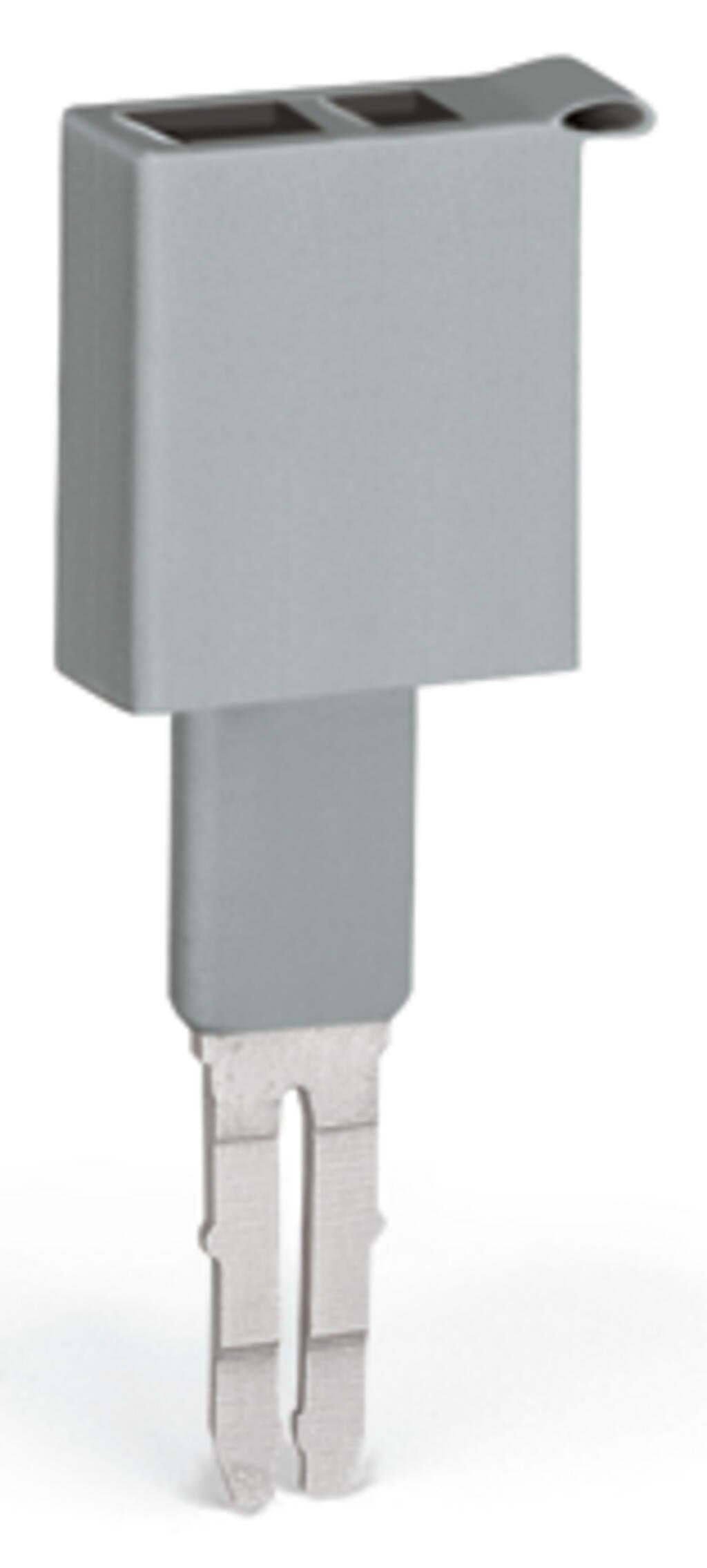

Product Model
281-407
Selling Points
- 1Features CAGE CLAMP spring connections for reliable and secure wiring.
- 2Suitable for wire sizes ranging from 0.08mm² to 2.5mm².
- 3Rated current of 24A ensures robust performance in industrial settings.
- 4Designed for plug-in mounting, simplifying installation processes.
- 5Constructed with durable materials to minimize downtime and protect sensitive systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Width | 6?mm?/ 0.236?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.074MJ | Weight | 2.2g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918255622 |
Customs tariff number | 8536694040 | End of Sale | 2024-05-27 |
End of Production | 2024-06-24 | End of Delivery | 2024-07-29 |
End of Service and Repair | 2026-07-29 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
