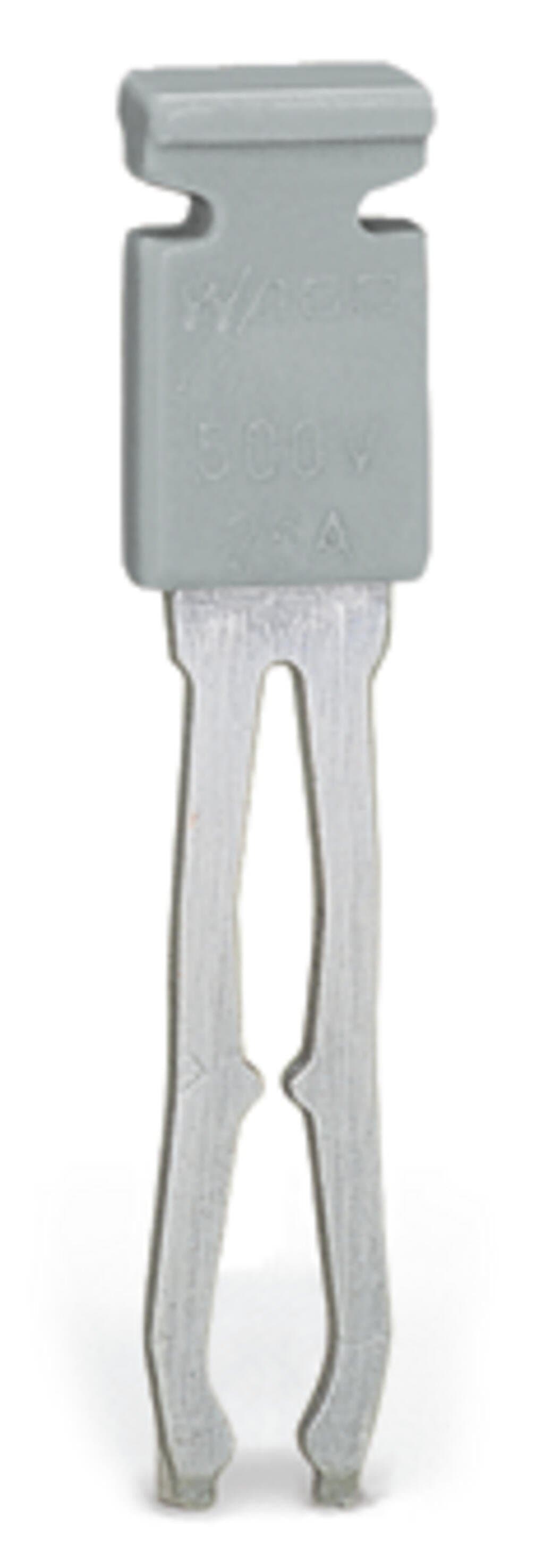

Product Model
281-421
Selling Points
- 1Insulated design for enhanced safety and reliability.
- 2Compatible with DIN rail terminal blocks for seamless integration.
- 3Gray color for easy identification in industrial settings.
- 424 A nominal current for efficient power distribution.
- 5RoHS compliant, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 8?mm?/ 0.315?inches |
Depth | 36.5 mm / 1.437 inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.008MJ | Weight | 0.9g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918270526 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A |
Specifications may be subject to change without notice
