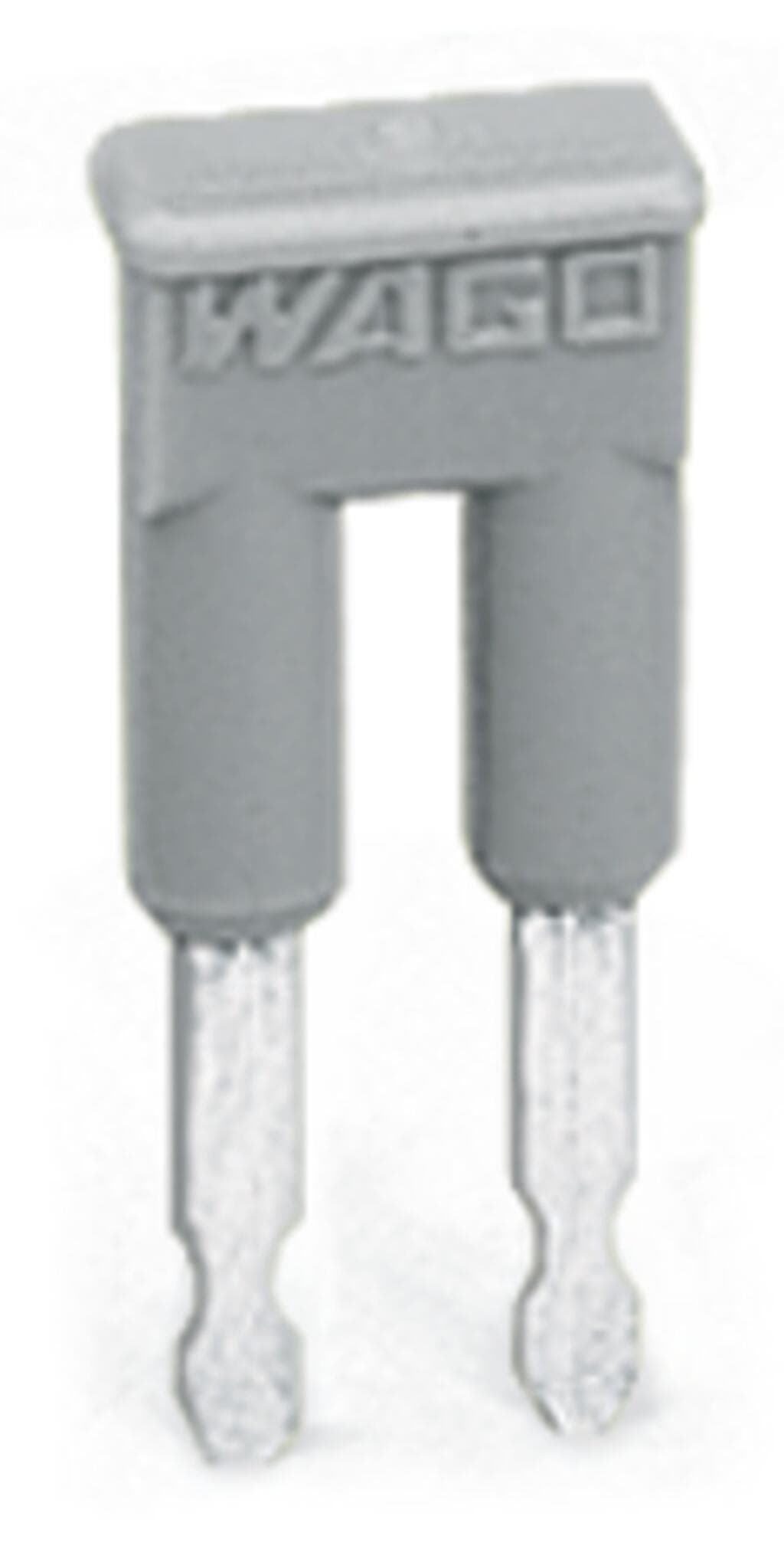

Product Model
281-482
Selling Points
- 1Compact Design: 0.197 in H x 0.472 in W dimensions for easy integration.
- 2Gray Insulation: Provides reliable electrical isolation and durability.
- 3Rail-Mounted Compatibility: Designed for use with DIN rail terminal blocks.
- 4High-Quality Materials: Made from durable materials ensuring long-term protection against corrosion.
- 5Easy Installation: Simple to install with no special tools required, enhancing efficiency in electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.3 mm / 0.405 inches | Height | 5?mm?/ 0.197?inches |
Depth | 20.6 mm / 0.811 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.009MJ |
Weight | 1.5g | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918523042 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
