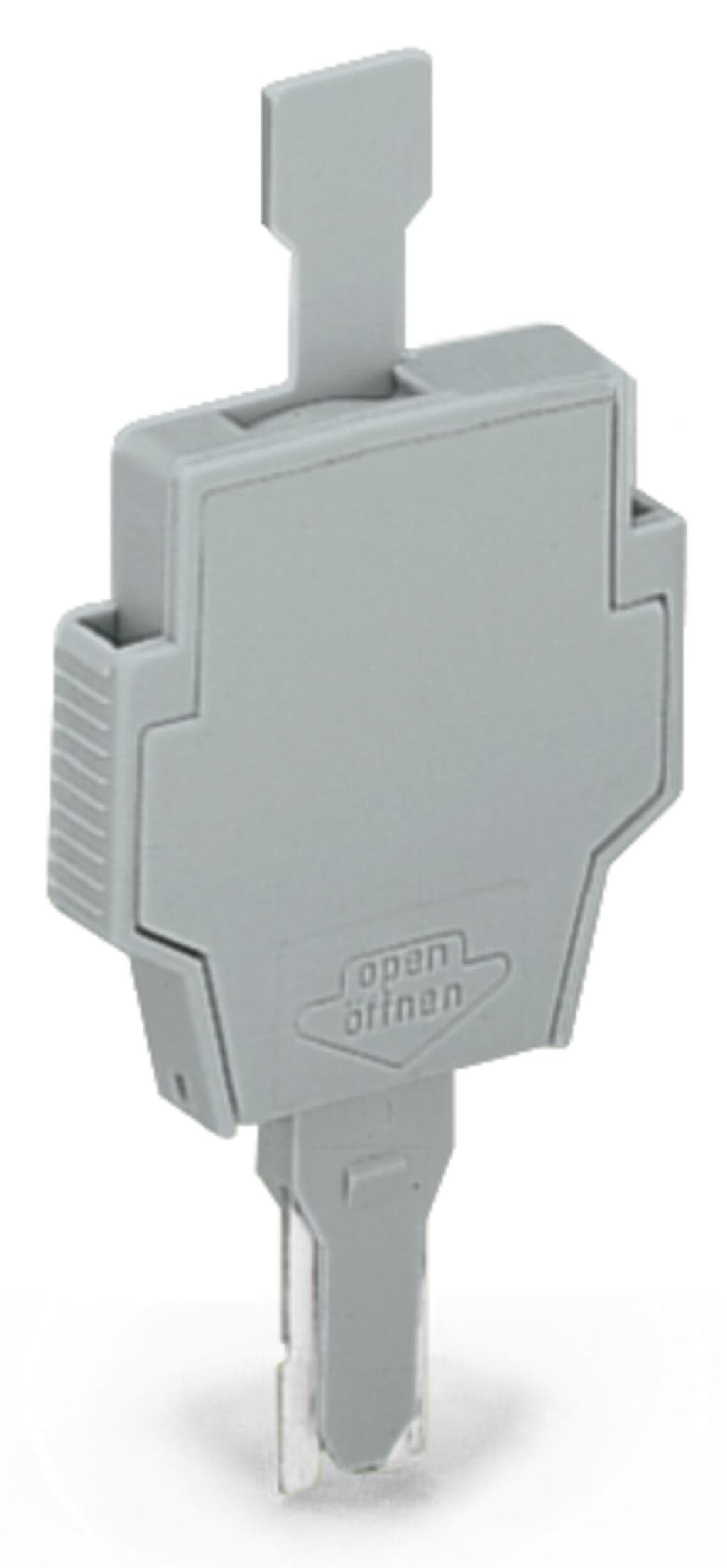

Product Model
281-511
Selling Points
- 1High Amperage Rating: 6.3A for robust electrical protection.
- 2Compact Design: 6 mm wide, ideal for tight spaces.
- 3Versatile Compatibility: Compatible with 5 x 20 mm and 5 x 25 mm miniature metric fuses.
- 4Durable Material: Made from gray polyamide 6.6 for long-lasting performance.
- 5Easy Installation: Features a pull-tab for simple and secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 6?mm?/ 0.236?inches | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 6.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-49 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC002018 |
ETIM 8.0 | EC002018 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821032540 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated current | 6.3A |
Operation status indicator | None | Ratings (note) | Electrical ratings are given by the fuse. |
Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. | Fuse type | Cylindrical fuse; 5 x 20 mm and 5 x 25 mm |
Specifications may be subject to change without notice
