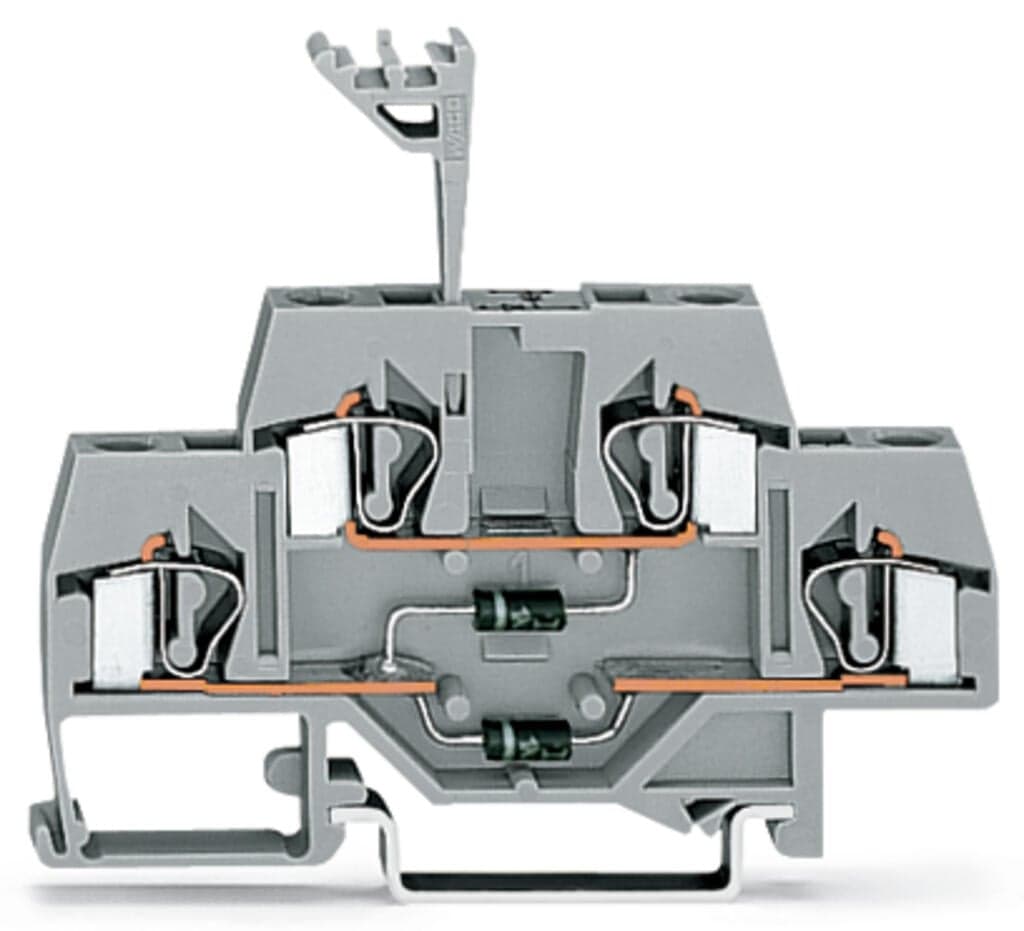

Product Model
281-635/281-491
Selling Points
- 1Industry-proven spring pressure connection technology for fast, vibration-proof, and maintenance-free connections.
- 2Push-in termination of solid and stranded conductors, including fine-stranded conductors with ferrules.
- 3Secure female plugs via locking levers and strain relief plates to prevent mis-mating.
- 4Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring versatile mounting options.
- 5Rated for 0.5 A and suitable for operating temperatures from -35°C to +85°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 6?mm?/ 0.236?inches |
Height | 73.5?mm?/ 2.894?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.258MJ | Weight | 14.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454197322 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | b7639986-8e0c-4dd7-b45d-e51f75e5ed8e |
SCIP notification number (Belgium) | ec311e87-598b-42e1-a4ea-65e667c6cfef | SCIP notification number (Bulgaria) | 21545266-0e83-4db5-8213-1ec10e0b444b |
SCIP notification number (Czech Republic) | 30946379-a61c-42c6-acaa-ce40487d57fa | SCIP notification number (Denmark) | 8d8c2f4e-4cef-431a-9597-037668bc8663 |
SCIP notification number (Finland) | 8ba043fb-c75d-4731-8560-fe30a16446d3 | SCIP notification number (France) | 7a43ad15-3fce-40f9-8731-ee32cc2b7717 |
SCIP notification number (Germany) | 4fbd3d66-b6a2-4c38-9855-3a0a2c12c728 | SCIP notification number (Hungary) | e2b7918b-072c-48f8-adac-16a01837e86a |
SCIP notification number (Italy) | 559aa660-36e0-4992-86cb-a825178771dc | SCIP notification number (Netherlands) | 61ab06f4-34e2-4a72-96a7-d3e356af35dc |
SCIP notification number (Poland) | 3330c805-fb84-4485-abc7-c324129df82f | SCIP notification number (Romania) | b8c7e07a-4da6-4c27-b2a2-37c98f7bf826 |
SCIP notification number (Sweden) | 442edf86-e619-4fdf-8064-f5efcbcda748 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
