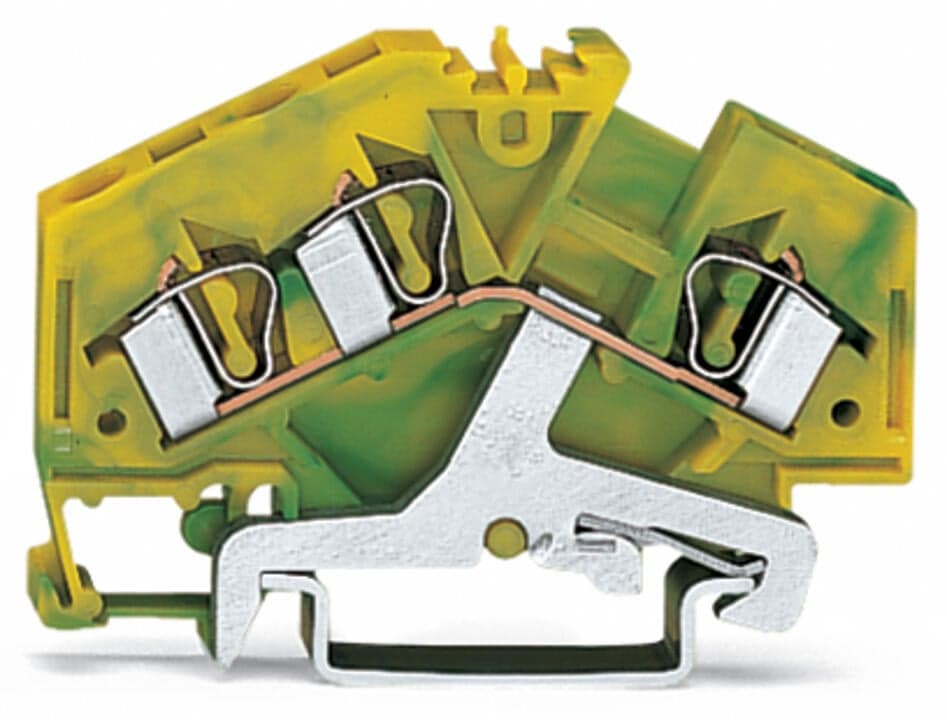

Product Model
281-637
Selling Points
- 132 A for efficient power distribution.
- 2Made of polyamide 66 (PA 66) insulation and copper conductor material.
- 3Front-entry wiring with center marking for easy installation.
- 4Meets 8 KV measured shock voltage and various international safety standards.
- 5Compatible with DIN-35 rail mounting for easy integration into industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 61.5?mm?/ 2.421?inches | Depth from upper-edge of DIN-rail | 37?mm?/ 1.457?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.182MJ | Weight | 16.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454084516 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 8ebffd6b-d704-4c73-a1ea-f22d46e7edd8 |
SCIP notification number (Belgium) | 7d44feb3-424a-4c9c-99e8-eb4d1f389027 | SCIP notification number (Bulgaria) | 1b13c812-b496-4e69-bd67-0df0c5418935 |
SCIP notification number (Czech Republic) | 8a715c8b-aeaa-4031-b9c3-1075e4ed817e | SCIP notification number (Denmark) | 05e879c6-7aa9-40c2-9147-e7a67fa4c81f |
SCIP notification number (Finland) | e8bf8034-1627-4da1-9562-bdabd34fa7df | SCIP notification number (France) | 72fcb6fc-9dd9-4035-8a85-7a3d46c7a660 |
SCIP notification number (Germany) | f5777116-8501-4288-9ca0-d85098732eb3 | SCIP notification number (Hungary) | 0cc5bb36-4cff-4c8d-8427-281e431d646d |
SCIP notification number (Italy) | b481d356-853f-4c40-abd2-deca378fe50f | SCIP notification number (Netherlands) | 33fdeceb-62aa-4b1c-a68f-35c7820f025d |
SCIP notification number (Poland) | 04af376b-5b6f-4c0a-9b75-cd4279d1825a | SCIP notification number (Romania) | 63ff3df5-1f82-4fef-ba5b-6c93e330dd42 |
SCIP notification number (Sweden) | 24846e08-6cee-449a-87f8-ab0a190b86ac | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Front-entry wiring, angled |
Specifications may be subject to change without notice
