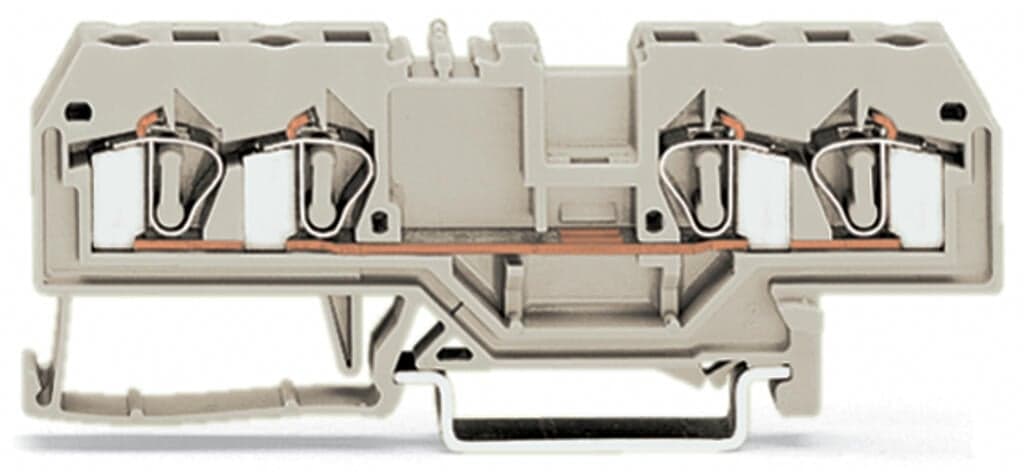

Product Model
281-994
Selling Points
- 1Ex e II Compliant: Meets stringent safety standards for hazardous environments.
- 2CAGE CLAMP Connections: Secure and easy-to-use spring connections.
- 3DIN-Rail Mounting: Compatible with DIN-35 rail systems (35 x 15 and 35 x 7.5).
- 4Front-Entry Wiring: Convenient and efficient wiring setup.
- 5UL/CSA Certified: Compliant with UL (20 AMP) and CSA (25 AMP) ratings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 29?mm?/ 1.142?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.211MJ | Weight | 12.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918486675 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Note (rated voltage) | Using staggered jumpers reduces the maximum rated voltage to 275 V. | Rated current (Ex e II) | 30A |
Power loss, per pole (potential) | 0.9W | Rated current I<sub>N</sub> for specified power loss | 30A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
