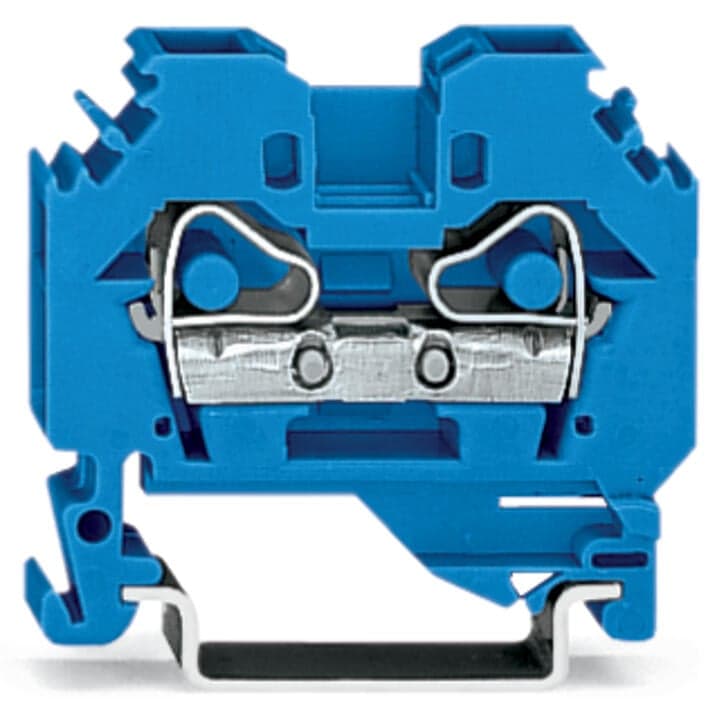

Product Model
282-104
Selling Points
- 1High amperage rating of 41 A for efficient power distribution.
- 2Compact dimensions (1.831 in H x 0.315 in W x 1.457 in D) for space-saving installations.
- 3Temperature rating from -60 to 105°F, ensuring durability in various environments.
- 4CAGE CLAMP connections for fast, vibration-proof, and maintenance-free operation.
- 5Suitable for Ex i applications, ensuring safety in explosive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 46.5?mm?/ 1.831?inches | Depth from upper-edge of DIN-rail | 37?mm?/ 1.457?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.185MJ | Weight | 11.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918511117 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.311W |
Rated current I<sub>N</sub> for specified power loss | 41A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
