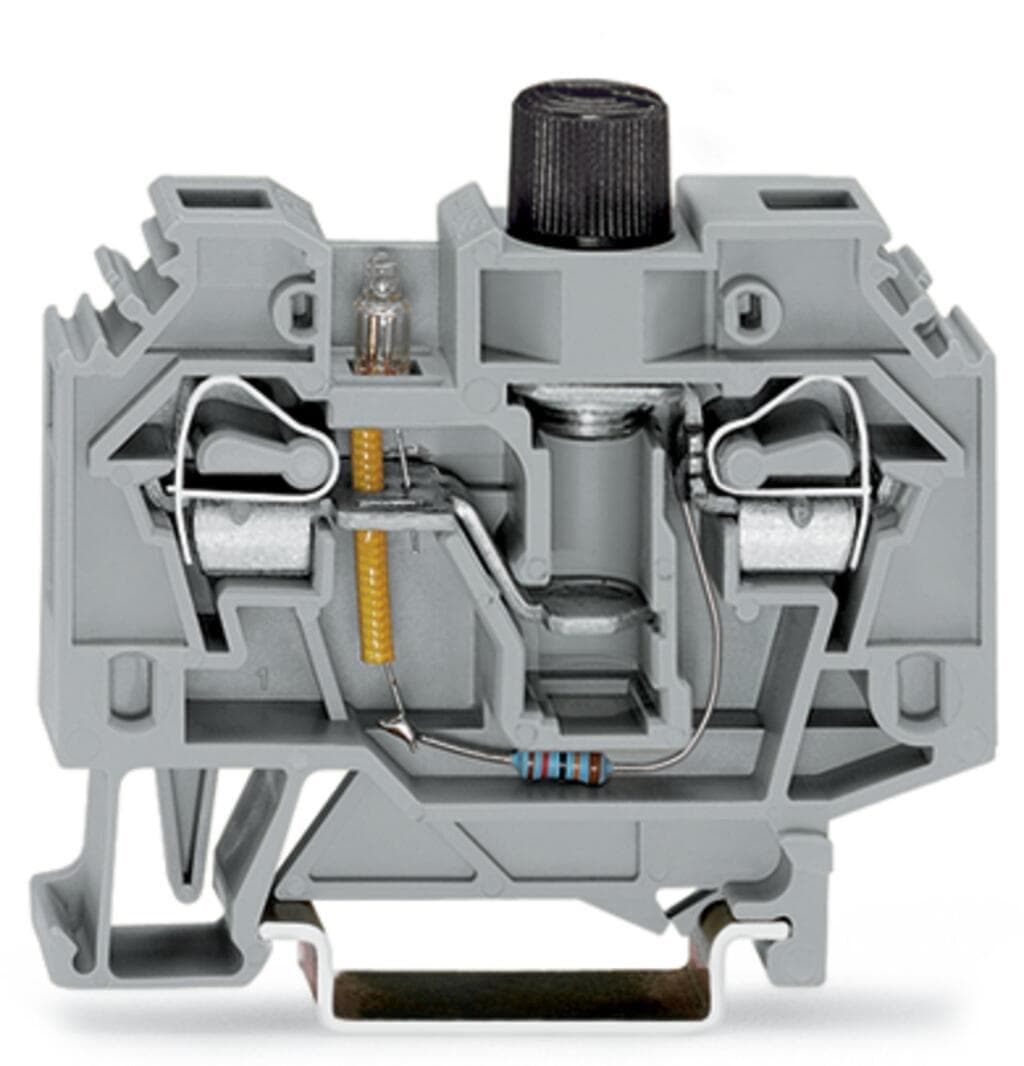

Product Model
282-124
Selling Points
- 1Gray Feed-Through Terminal Block: Gray color for easy identification.
- 2CAGE CLAMP Connection: Secure and reliable connection technology.
- 3Neon Lamp Indication: Blown fuse indication by neon lamp.
- 4DIN-35 Rail Mounting: Compatible with DIN-35 rail (35 x 15 / 35 x 7.5).
- 5Wide Conductor Range: Accommodates wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Width | 13?mm?/ 0.512?inches |
Height | 62?mm?/ 2.441?inches | Depth from upper-edge of DIN-rail | 54.5?mm?/ 2.146?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.544MJ | Weight | 26.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-16 |
eCl@ss 9.0 | 27-14-11-16 | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821110309 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated current | 10A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated voltage (III/3) 2 | 220V |
Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. | Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 2.5W |
Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 2.5W | Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 4W |
Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 4W | Voltage type 1 | AC |
Voltage type 2 | DC | Fuse receptacle | screwed |
Fuse type | Cylindrical fuse; 5 x 20 mm | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
