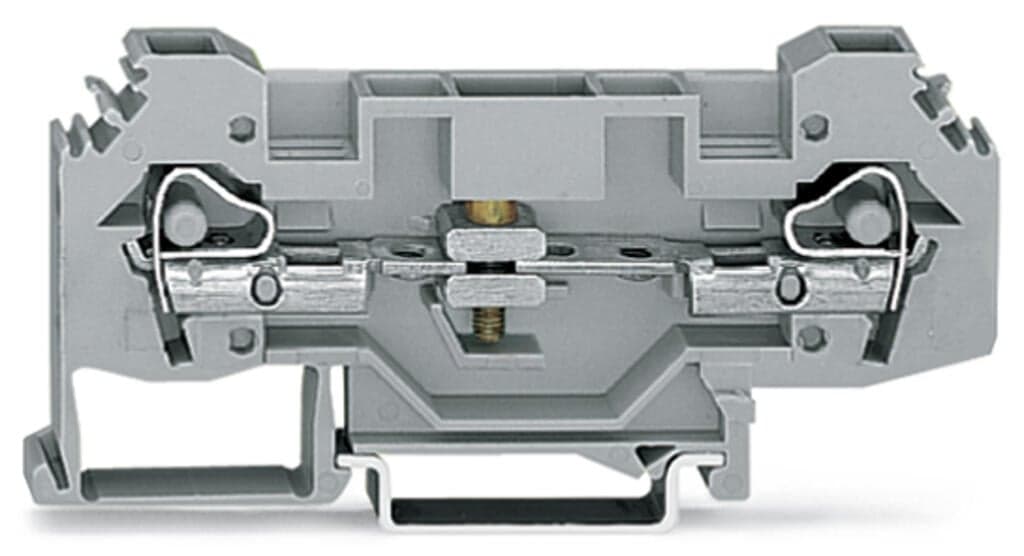

Product Model
282-135
Selling Points
- 1Built with high-quality materials, ensuring long-lasting performance.
- 2Designed for easy mounting on DIN-rail 35 x 15 and 35 x 7.5.
- 3Supports wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG.
- 4Rated for 41A current and 6kV impulse voltage.
- 5Features an operating tool for easy actuation and disconnection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 37?mm?/ 1.457?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.303MJ | Weight | 20.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821397113 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 3e9e1e88-5c94-4ed9-9972-7249f232f2cf |
SCIP notification number (Belgium) | 963e2c3a-bf15-4ce1-89ec-5cb4046fc755 | SCIP notification number (Bulgaria) | 5b1c12c4-5eca-4293-be0e-bafa8db23239 |
SCIP notification number (Czech Republic) | b81dda48-1cae-4eea-9ca2-9621a496c34b | SCIP notification number (Denmark) | 2dad3ff6-82f2-4477-bb5b-c360acece6fa |
SCIP notification number (Finland) | c0c8f938-f76b-411e-a8b0-2e1878ba3f25 | SCIP notification number (France) | 44d44d15-e8db-4d07-9e89-d0b288c88e63 |
SCIP notification number (Germany) | 9c615d24-0234-433b-ad0f-f40bb19c1a8d | SCIP notification number (Hungary) | 2571880d-1fc7-4f06-8de8-a3701e4f12e6 |
SCIP notification number (Italy) | 670fe476-a3e0-49be-97a7-3f6326a85311 | SCIP notification number (Netherlands) | 25f20aad-b160-4247-b6c7-400be7f7b75b |
SCIP notification number (Poland) | fbfb8cc8-91ba-4500-b420-5bbd37eac6eb | SCIP notification number (Romania) | 77bc640b-2012-415d-bce2-59849d46e695 |
SCIP notification number (Sweden) | 2da1d1d0-aea0-4dad-80b0-162779f3506f | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 41A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.311W |
Rated current I<sub>N</sub> for specified power loss | 41A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
