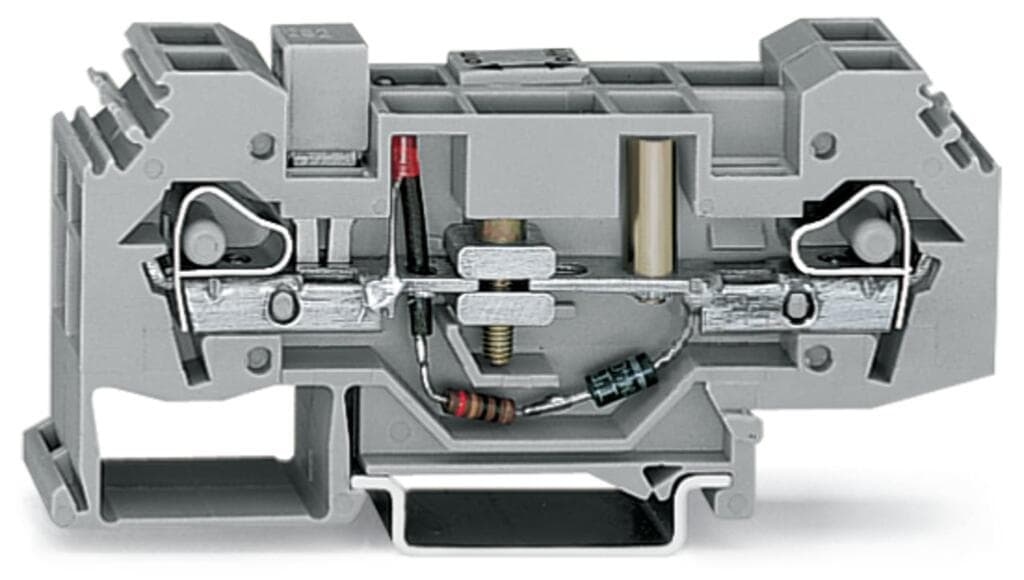

Product Model
282-141
Selling Points
- 1Operates at 48V for reliable high-voltage connections.
- 2Secure and efficient connection method using CAGE CLAMP spring connections.
- 3Made from polyamide (PA66) insulation material for long-lasting performance.
- 4Supports wire sizes from 0.2mm² to 6mm² or #24AWG to #10AWG.
- 5Meets EN 60947 standards and is certified by Bureau Veritas, DEKRA, and DNV GL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 38.5?mm?/ 1.516?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.745MJ | Weight | 45.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454448523 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a3a018b0-a404-47ab-b5fc-fdb3f1a392c2 |
SCIP notification number (Belgium) | 939648d2-0c32-49cb-9ff1-5db350e7c3cb | SCIP notification number (Bulgaria) | c9c7d68d-38db-418a-87d3-04dcc5398bfa |
SCIP notification number (Czech Republic) | 04a9be1b-4461-4f25-8889-1a6a9ab93e8a | SCIP notification number (Denmark) | 3cff43e6-2095-49b3-b4dc-536ab8aca692 |
SCIP notification number (Finland) | 4f2af339-f4a9-456b-a0b8-2e43aec59935 | SCIP notification number (France) | d07fa2bb-9e01-4f85-9b59-3da7c3fcc5ab |
SCIP notification number (Germany) | 64d12446-8184-46cc-bc87-40d531496935 | SCIP notification number (Hungary) | db11e906-cf78-414c-84fa-1cbfbe20d008 |
SCIP notification number (Italy) | 6a37dd9e-3d2d-491f-ace4-d865507c27f9 | SCIP notification number (Netherlands) | be4023a1-dc73-42d5-bf1c-189028a95acf |
SCIP notification number (Poland) | 19c11706-714b-4986-ae80-07db3441e982 | SCIP notification number (Romania) | 006771f9-f8f5-4c76-b81f-b8c02ab5810c |
SCIP notification number (Sweden) | 9f2dd056-e4b8-4b8b-861f-53c4aac70b89 | Operation status indicator | 48 V |
Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
