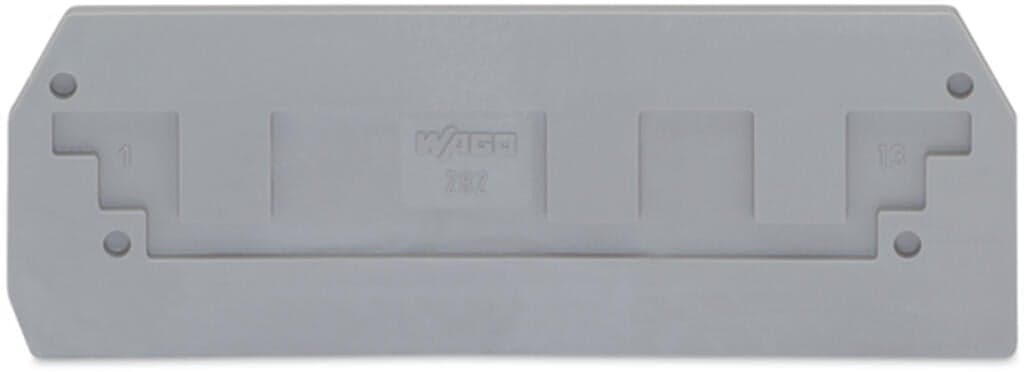

Product Model
282-308
Selling Points
- 12.5 mm Thickness: Durable and robust construction.
- 20.148 MJ Fire Load: Meets stringent fire safety standards.
- 3Gray Color: Easy to integrate with various industrial settings.
- 4Rail Mounted Compatibility: Perfect for terminal block applications.
- 5High-Temperature Operation: Continuous operating temperature up to 105°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 92.8?mm?/ 3.654?inches |
Depth | 31?mm?/ 1.22?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.148MJ | Weight | 4.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332293112 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
