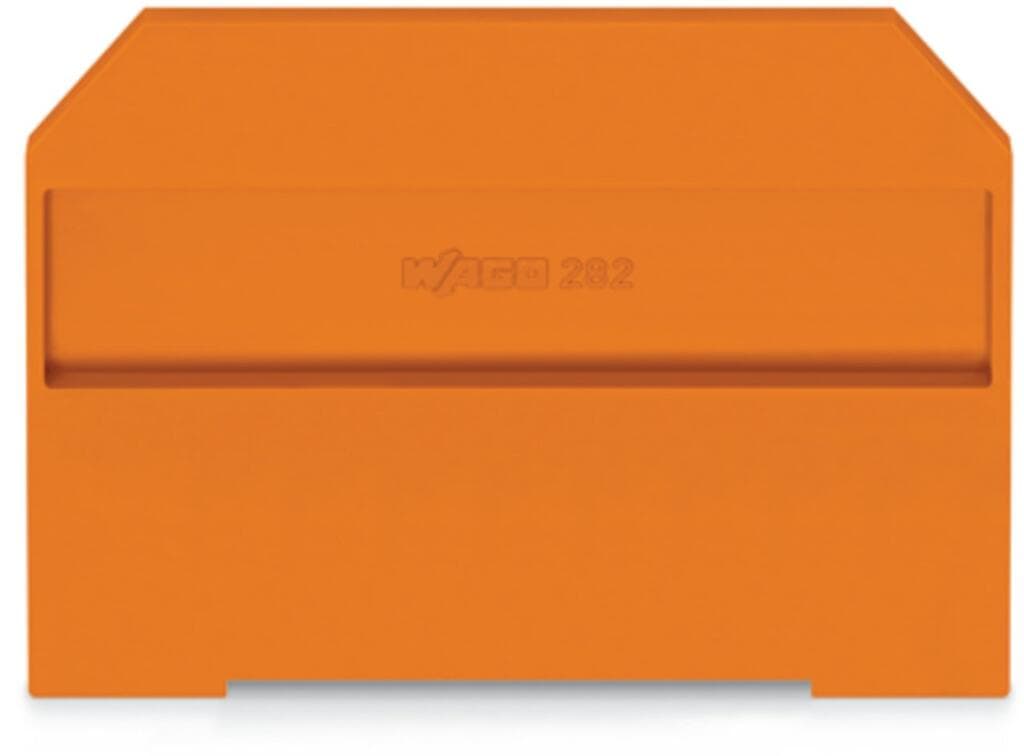

Product Model
282-312
Selling Points
- 1Compact design with dimensions: 4 mm x 62 mm x 46.4 mm.
- 2Made from high-quality, flame-resistant material (UL94 V0).
- 3Available in orange color for easy identification.
- 4Suitable for end and intermediate connections in various applications.
- 5Available in quantities of 25 pieces for efficient ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4?mm?/ 0.157?inches | Height | 62?mm?/ 2.441?inches |
Depth | 46.4?mm?/ 1.827?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.132MJ | Weight | 4.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332286114 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
