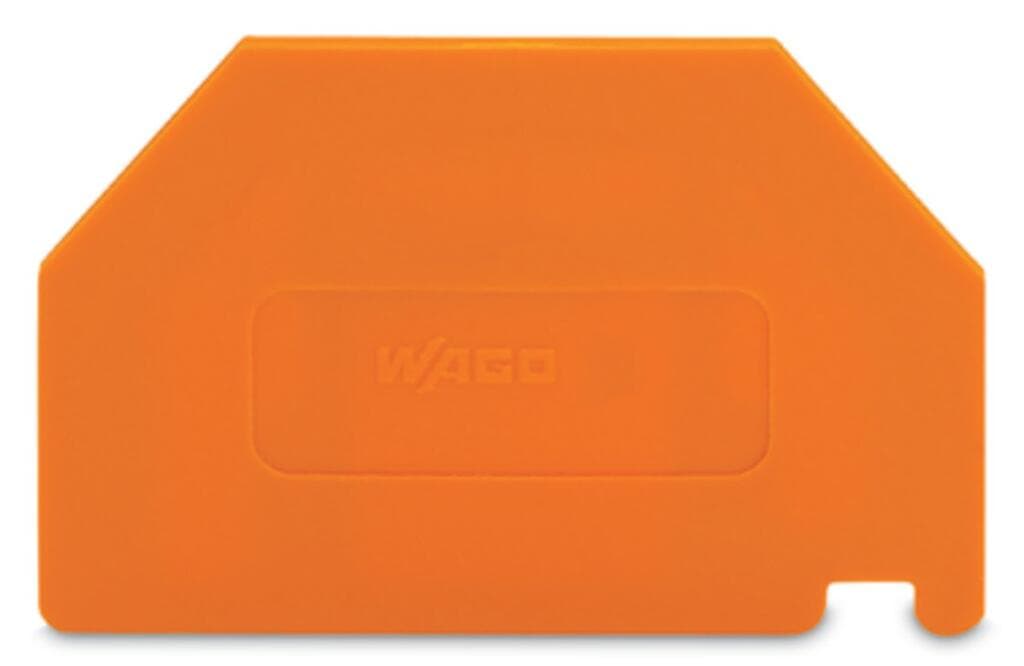

Product Model
282-322
Selling Points
- 1High-Quality Material: Made from durable materials with a 2 mm thickness.
- 2Efficient Fire Load Resistance: Features a fire load of 0.102 MJ, ensuring safety in high-temperature environments.
- 3Compact Design: Dimensions are 2.205 in H x 0.079 in W x 1.449 in D, perfect for space-constrained applications.
- 4Easy Installation: Designed for rail-mounted systems, simplifying the installation process.
- 5Compliance Standards: Meets RoHS and UL94 V0 flammability standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 56?mm?/ 2.205?inches |
Depth | 36.8?mm?/ 1.449?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.102MJ | Weight | 3.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332278133 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
