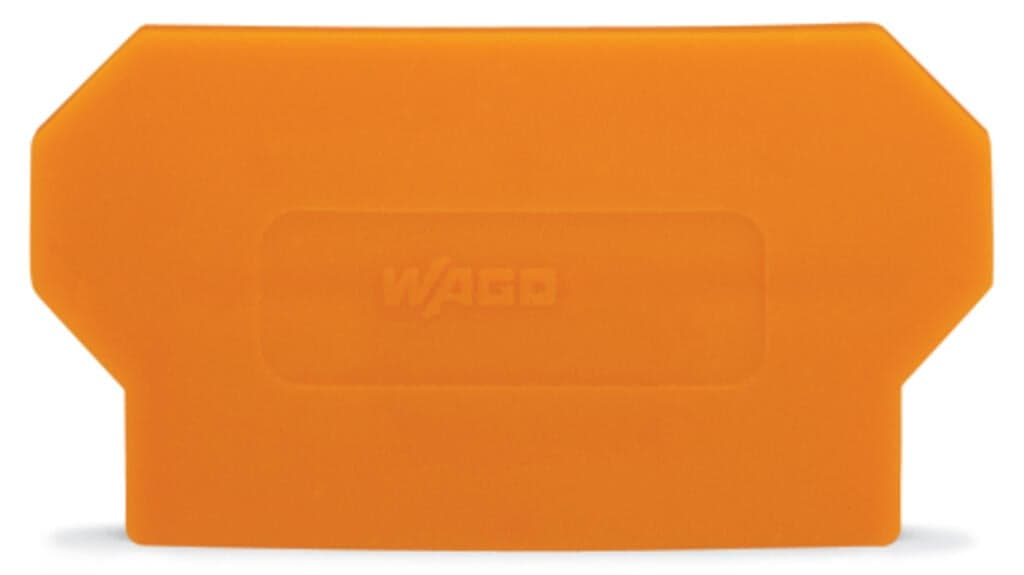

Product Model
282-327
Selling Points
- 1High-Quality Material: Made from durable, flame-resistant material with a flammability class of V0.
- 2Compact Design: 2 mm thick, oversized separator plate for easy installation.
- 3Durable Construction: Fire load of 0.081 MJ and operating temperature range from -60°C to +105°C.
- 4Easy Installation: Designed for DIN rail mounting, ensuring quick and secure setup.
- 5Versatile Use: Suitable for various industrial applications, including power distribution and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 62?mm?/ 2.441?inches |
Depth | 29.2?mm?/ 1.15?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.081MJ | Weight | 2.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332286169 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
