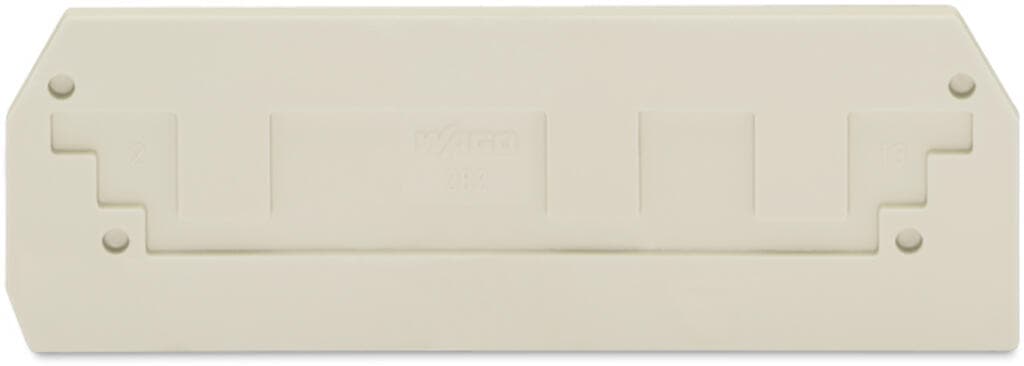

Product Model
282-341
Selling Points
- 1Constructed from durable, light gray material with a flammability class of V0.
- 2Suitable for both end and intermediate plate applications in rail and chassis systems.
- 3Operates continuously between -60°C and +105°C, ensuring reliability in various environments.
- 4Measures 32.5 mm in depth, 92.8 mm in height, and 2.5 mm in width, making it space-efficient.
- 5Available in quantities of 25 items or more, with competitive pricing starting at $1.44 per unit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 92.8?mm?/ 3.654?inches |
Depth | 32.5?mm?/ 1.28?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.154MJ | Weight | 5.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332291583 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
