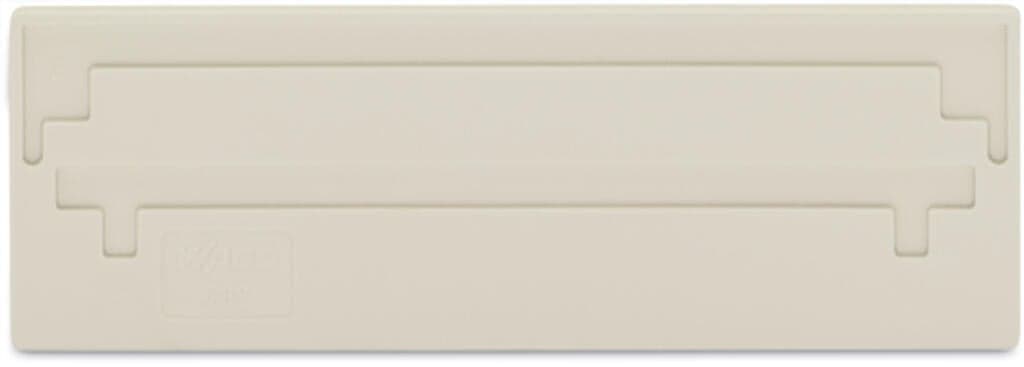

Product Model
282-342
Selling Points
- 1Oversized Design: 2 mm thick for enhanced durability and separation.
- 2Light Gray Color: Easy to integrate into various industrial settings.
- 3RoHS Compliant: Meets environmental standards for safe use.
- 4Continuous Operating Temperature: -60°C to +105°C for versatile application.
- 5Flammability Class V0: Ensures high safety standards in flammable environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 91.9?mm?/ 3.618?inches |
Depth | 31?mm?/ 1.22?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.128MJ | Weight | 4.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332293150 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
