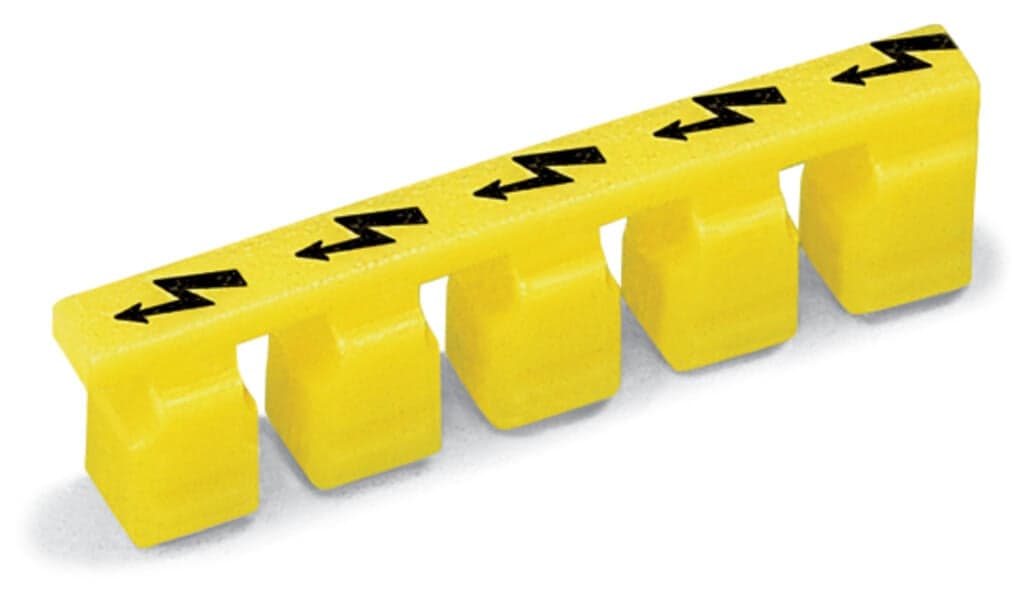

Product Model
282-405
Selling Points
- 1Secure connections without wire damage or loose connections.
- 2Eliminates the need for wire preparation like crimps, ferrules, or tinning.
- 3Suitable for rail, car manufacture, power generation, and outdoor installations.
- 4Accommodates wire sizes from 0.08 mm² to 35 mm² with minimal space requirements.
- 5No special tools needed; simply push the wire into the CAGE CLAMP terminal block.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.035MJ |
Weight | 1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332286190 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
