Product Model
282-424
Selling Points

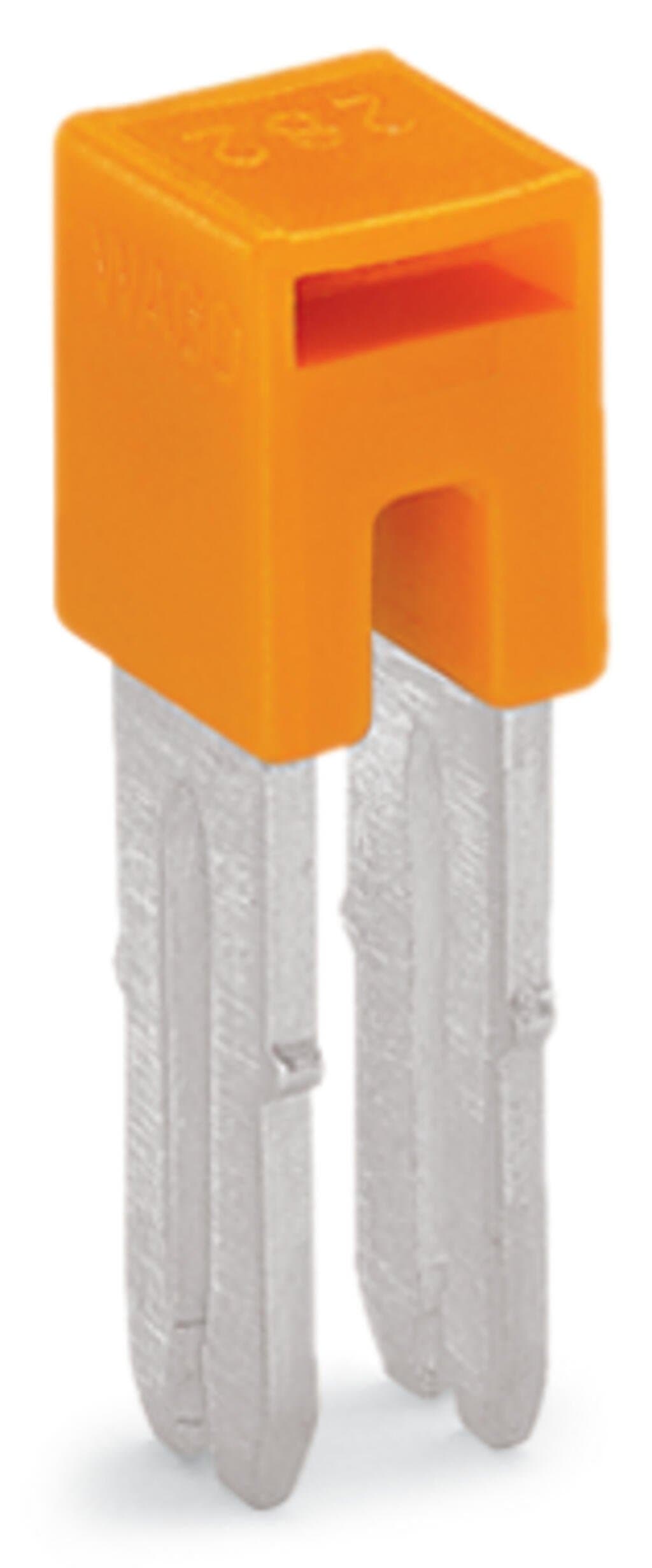

- 1Insulated adjacent jumper for secure connections.
- 2Rated current of 41 A for high-performance applications.
- 3Dimensions: 8 mm x 8 mm for compact installation.
- 4Orange color for easy identification in electrical systems.
- 5Made in Germany with high-quality materials for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 8?mm?/ 0.315?inches | Height | 8?mm?/ 0.315?inches |
Depth | 24.6 mm / 0.969 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.015MJ |
Weight | 2.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918396301 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 41A |
Specifications may be subject to change without notice
