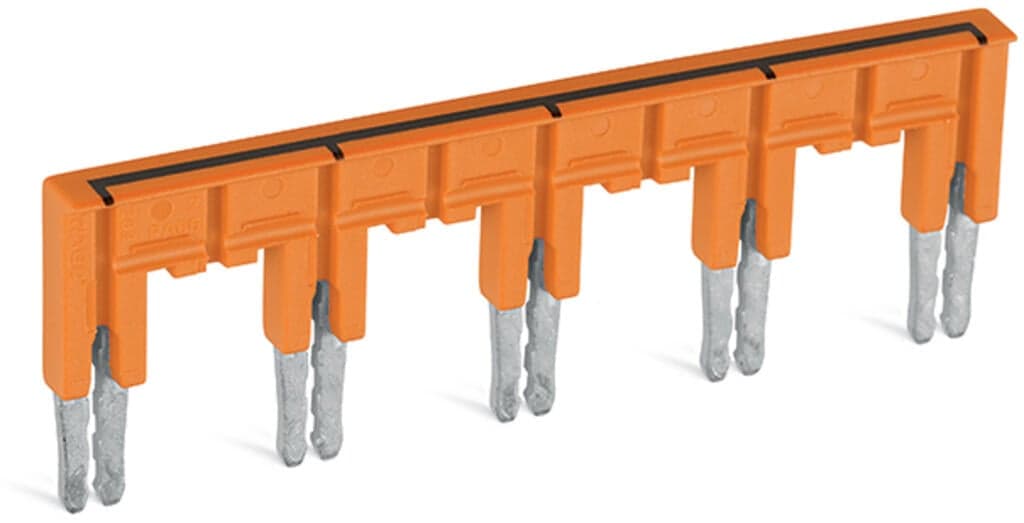

Product Model
282-439/011-000
Selling Points
- 1Supports up to 800 V for reliable high-voltage applications.
- 2Quickly connect conductors without tools, suitable for solid conductors and fine-stranded wires.
- 3Features three marking positions for WMB or miniature WSB markers, ensuring clear identification.
- 4Accommodates conductor sizes from 0.14 to 1.5 mm², including both solid and insulated ferrule types.
- 5Built with high-quality materials for long-lasting performance in demanding electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Jumper assignment | 1-3-5-7-9 | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.061MJ | Weight | 11g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821748588 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 30A |
Specifications may be subject to change without notice
