Product Model
282-440
Selling Points

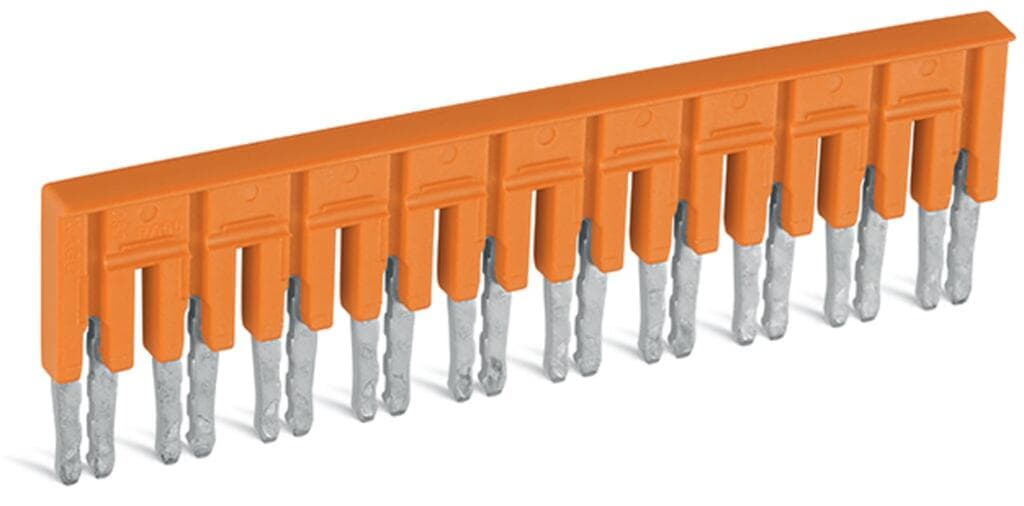

- 1Insulated 10-way jumper with a nominal current of 30A.
- 2Orange color for easy identification.
- 3Designed for electrical applications.
- 4Available in packs of 10 for convenience.
- 5Compliant with ROHS standards for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Jumper assignment | 1-2-3-4-5-6-7-8-9-10 | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.073MJ | Weight | 12.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918754712 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 30A |
Specifications may be subject to change without notice
